64 12 676 Replacing electric auxiliary heater - 3rd seat row

WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove centre console - 3rd seat row. See 51 16 ... REMOVING AND INSTALLING/REPLACING CENTRE CONSOLE FOR 3RD SEAT ROW .
NOTE: The following pictures show the 3rd seat row and seat cushion removed for purposes of clarity.

Disconnect plug connection (1).

Fig 1: Disconnect Plug Connection (1)

Courtesy of BMW OF NORTH AMERICA, INC.

Detach Starlock washer (1) from holding rod (2). Installation: If necessary, replace defective Starlock washer (1). Make sure Starlock washer (1) is correctly seated on holding rod (2).

Fig 2: Detach Starlock Washer (1) From Holding Rod (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Slide holding rod (1) in direction of arrow out of guides and tilt seat cushion (2) forwards

Fig 3: Slide Holding Rod (1) In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

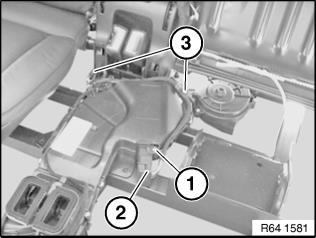

Release screw (1) and feed out auxiliary heater (2). Installation: Ensure correct line routing (3).

Fig 4: Release Screw (1) And Feed Out Auxiliary Heater (2)

Courtesy of BMW OF NORTH AMERICA, INC.
