64 12 300 Removing and installing/replacing complete electric auxiliary heater - 3rd seat row

WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove A/C control unit - 3rd seat row.
Remove centre console - 3rd seat row.

NOTE: The following operations are shown with the 3rd seat row removed.

Detach Starlock washer (1) from holding rod (2). Installation: If necessary, replace defective Starlock washer (1). Make sure Starlock washer (1) is correctly seated on holding rod (2).

Fig 1: Detach Starlock Washer (1) From Holding Rod (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Slide holding rod (1) in direction of arrow out of guides and tilt seat cushion (2) forwards.

Fig 2: Slide Holding Rod (1) In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Fig 3: Release Screw (1)

Courtesy of BMW OF NORTH AMERICA, INC.

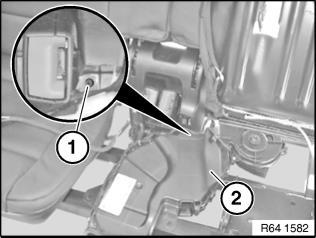

Release screw (1) and remove heater (2).

Fig 4: Release Screw (1) And Remove Heater (2)

Courtesy of BMW OF NORTH AMERICA, INC.
