64 12 ... Overview of blower - 3rd seat row -

WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

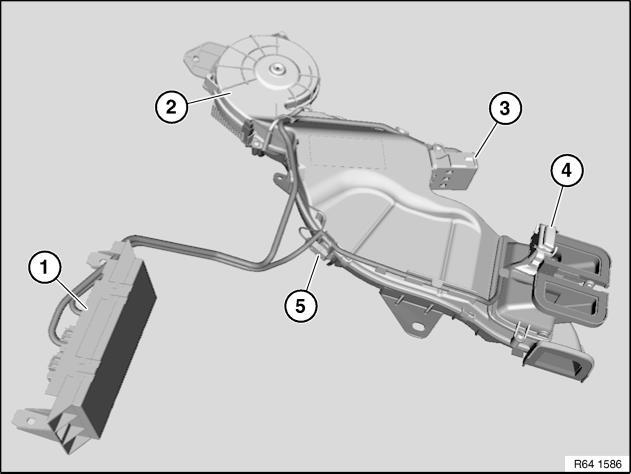

Fig 1: Overview Of Blower - 3rd Seat Row
G00496932Courtesy of BMW OF NORTH AMERICA, INC.

  1. A/C control unit, 3rd seat row
  2. Blower motor, 3rd seat row
  3. Electric heating element, 3rd seat row
  4. Blower switch, 3rd seat row
  5. Temperature sensor, cold air distributor
