63 31 250 Removing and installing/replacing optical fibre in front left or right door trim panel

WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (interior lights) .

Necessary preliminary tasks:

Remove front door trim panel. See 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL

Release retaining clips (1) for optical fibre (2) from door trim panel (3). Carefully feed optical fibre (2) in direction of arrow out of door trim panel (3) and remove.

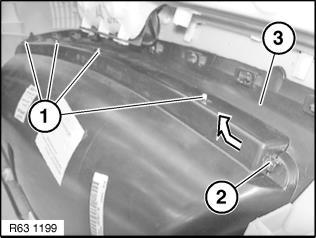

Fig 1: Removing/Installing Optical Fibre In Front Left Or Right Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation: Make sure retaining clips (1) are correctly engaged on door trim panel (3).
