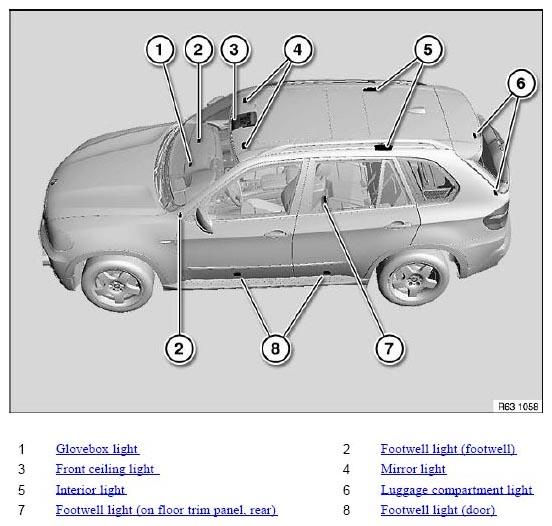

63 31 .. Overview of Interior Lights
WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
- Glovebox light. See 63 31 150 Removing and Installing/Replacing Glovebox Light and 63 99 461 Replacing Bulb for Glovebox Light
- Footwell light (footwell). See 63 31 020 Removing and Installing/Replacing Footwell Light (Door) and 63 99 437 Replacing Light Bulb for Footwell Light
- Front ceiling light. See 61 31 043 REMOVING AND INSTALLING OR REPLACING ROOF SWITCH CENTRE and 63 99 431 Replacing Bulb for Front Ceiling Light
- Mirror light. See 63 31 050 Removing and Installing/Replacing Mirror Light
- Interior light. See 63 31 015 Removing and Installing/Replacing Left Or Right Interior Light , 63 99 435 Replacing Light Bulb for Left or Right Interior Light
- Luggage compartment light. See 63 31 080 Removing and Installing/Replacing Luggage Compartment Light , 63 99 451 Replacing Light Bulb for Luggage Compartment Light (on Rear Lid)
- Footwell light (on floor trim panel, rear). See 63 31 023 Removing and Installing/Replacing Footwell Light (On Floor Trim Panel, Rear) , 63 99 437 Replacing Light Bulb for Footwell Light
- Footwell light (door). See 63 31 020 Removing and Installing/Replacing Footwell Light (Door) , 63 99 437 Replacing Light Bulb for Footwell Light
