63 21 183 Removing and refitting/replacing left or right rear light as fitted from 03/2010 (on tailgate)

WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

00 9 318. See ASSEMBLY WEDGES (SET IN PLASTIC CASE)

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection). See 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary preliminary tasks:

Remove luggage compartment light. See 63 31 080 Removing and Installing/Replacing Luggage Compartment Light

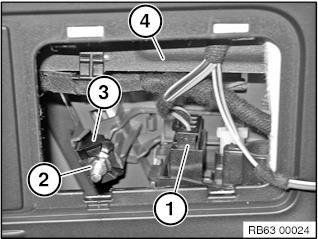

Unfasten plug connection (1) and disconnect. Slacken nut (2) until clamping claw (3) can be routed past tailgate (4). Tightening torque, see 63 21 3AZ in 63 21 REAR LIGHT UNIT .

Fig 1: Slacken Nut (2) Until Clamping Claw (3) Can Be Routed Past Tailgate

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note: Make sure clamping claw (3) is correctly seated on tailgate (4).

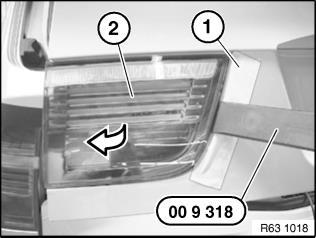

IMPORTANT: Risk of damage! Tape off tailgate with suitable protective film (1).

Lever out rear light (2) with special tool 00 9 318 in direction of arrow.

Installation note: Make sure gap is uniform all round between rear light (2) and tailgate.

Fig 2: Make Sure Gap Is Uniform All Round Between Rear Light (2) And Tailgate

Courtesy of BMW OF NORTH AMERICA, INC.

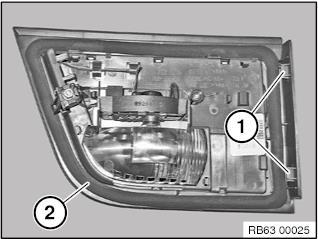

Installation note: Position tabs (1) of rear light exactly over side edge of tailgate.

Make sure sealing frame (2) is correctly seated. If necessary, replace sealing frame (2).

Fig 3: Make Sure Sealing Frame (2) Is Correctly Seated

Courtesy of BMW OF NORTH AMERICA, INC.
