63 11 731 Replacing left daytime light LED modules

WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights).

Necessary preliminary work:

Remove left headlight .

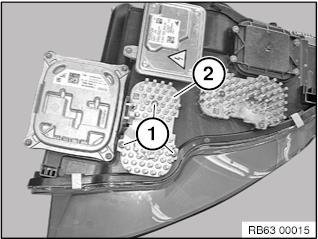

Release screws (1). Carefully lift LED module (2) slightly upwards.

Fig 1: Carefully Lift Led Module (2) Slightly Upward

Courtesy of BMW OF NORTH AMERICA, INC.

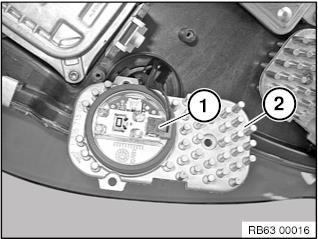

Unfasten plug connection (1) and disconnect. Remove LED module (2).

Fig 2: Removing LED Module

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Always replace LED modules (2) as a pair.

Replace seal for LED module (2). Make sure LED module (2) is correctly seated. Note bulb type. See LIGHTS - TECHNICAL DATA .
