54 10 052 Replacing Fastener For Wind Deflector On Left Or Right

WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

51 3 057

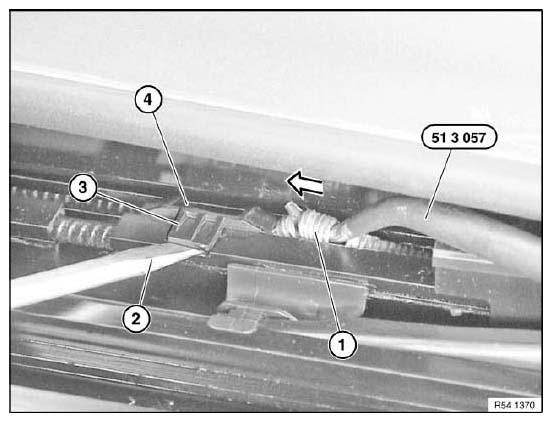

Fig 1: Identifying Special Tools (51 3 057)
Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 51 3 057 in spring (1). See 51 3 050 TOOL .

Using a suitable tool (2), unlock catch (3) of fastener for wind deflector (4).

Slide fastener for wind deflector (4) and spring (1) with special tool 51 3 057 in direction of arrow up to opening in guide. See 51 3 050 TOOL .

IMPORTANT: Special tool 51 3 057 may only be removed from spring (1) after new fastener for wind deflector has been installed. See 51 3 050 TOOL .

Installation:

Make sure catch of fastener for wind deflector is correctly seated and engaged.

Feed centering element for wind deflector (1) in direction of arrow out of opening (2) in guide (3).

Fig 2: Identifying Centering Element For Wind Deflector

Courtesy of BMW OF NORTH AMERICA, INC.

Using a suitable tool (2), disengaged spring (1) of fastener for wind deflector (3) in direction of arrow.

Installation:

Check guide for cleanness, remove foreign bodies/dirt if necessary
Make sure spring is correctly seated on fastener for wind deflector

Fig 3: Disengaging Spring Of Fastener For Wind Deflector
Courtesy of BMW OF NORTH AMERICA, INC.
