54 10 030 Removing and Installing Mechanism For Rear Glass Lid

WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove complete glass slide/tilt sunroof. See 54 13 080 Removing and Installing Complete Glass Slide/Tilt Sunroof .
Remove glass slide/tilt sunroof lid at rear. See 54 10 175 Removing and Installing Rear Glass Slide/Tilt Sunroof Cover .
Remove rear drip molding. See 54 13 105 Removing and Installing/Replacing Rear Drip Molding .
Remove drive units with gearing. See 67 61 005 REPLACING DRIVE WITH GEAR (FRONT) FOR ACTUATING SLIDE/TILT SUNROOF and 67 61 007 REMOVING AND INSTALLING/REPLACING DRIVE WITH GEAR (REAR) FOR ACTUATING SLIDE/TILT SUNROOF (REAR) .

Overview of glass lid mechanism:

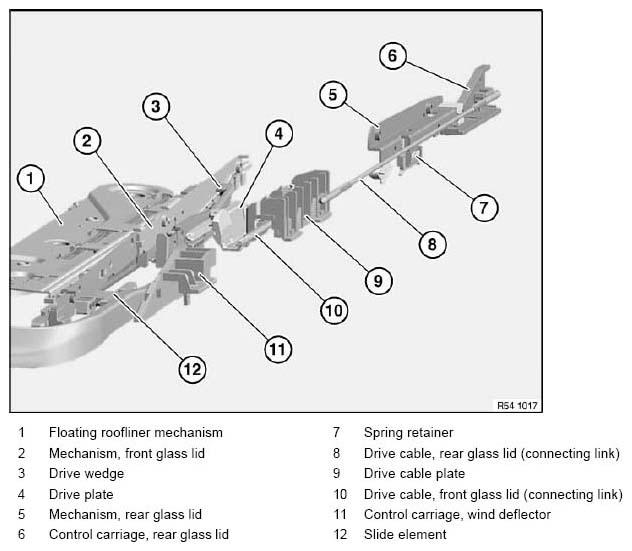

Fig 1: Identifying Glass Lid Mechanism Components

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Always replace mechanism for glass slide/tilt sunroof in pairs.
If necessary, lightly grease guide channel.

NOTE: Drip molding carrier cannot be removed without incurring damage.

Break out tabs with a screwdriver and lever out carrier.

Installation:

Replace drip molding carrier and hook into place.

Fig 2: [Identifying Tabs]

Courtesy of BMW OF NORTH AMERICA, INC.

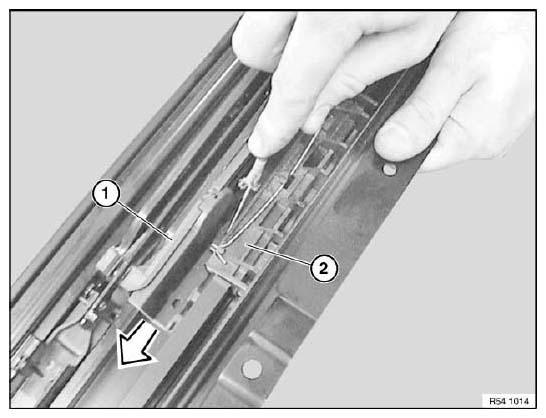

Fig 3: Sliding Front Connecting Link

Courtesy of BMW OF NORTH AMERICA, INC.

Slide front connecting link (1) towards rear past drive cable plate (2).

If front glass lid is installed, move mechanism with lid.

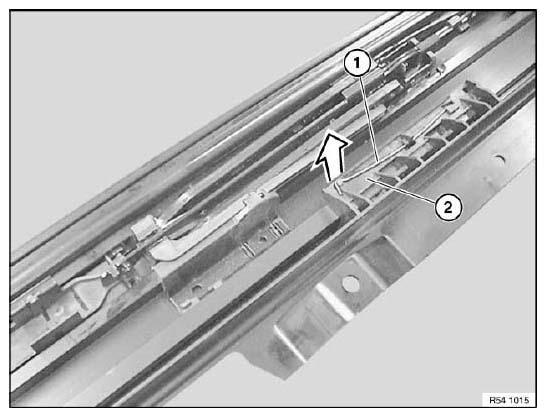

Fig 4: Removing Retaining Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out retaining bracket (1) from drive cable plate (2).

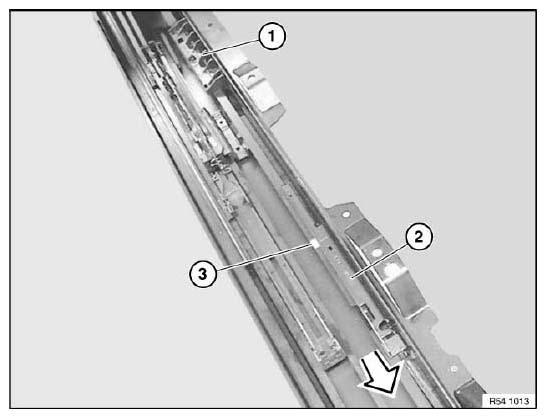

Fig 5: Identifying Rear Connecting Line

Courtesy of BMW OF NORTH AMERICA, INC.

Slide rear connecting line (2) with drive cable plate (1) towards rear until spring retainer (3) is exposed.

NOTE: Spring retainer (3) cannot be removed without incurring damage.

Lever out spring retainer (3) with screwdriver.

Installation:

Replace faulty spring retainer.

Continue sliding rear connecting link (2) with drive cable plate (1) towards rear out of guide channel and remove in succession.

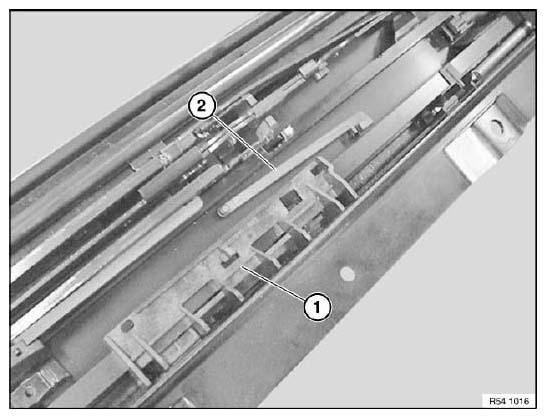

Fig 6: Identifying Drive Cable Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slide drive cable plate (1) up against drive cable.

Install locking lever (2) and lock retaining bracket.

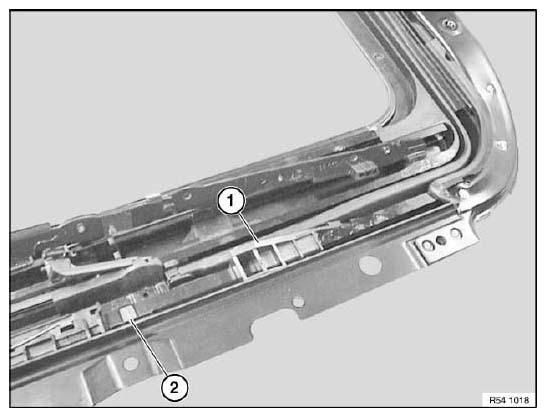

Fig 7: Identifying Spring Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

Removing control carriage for wind deflector:

NOTE: Spring retainer (2) cannot be removed without incurring damage.

Lever out spring retainer (2) with screwdriver.

Installation:

Replace faulty spring retainer.

Pull control carriage (1) for wind deflector towards rear out of rail and remove.

NOTE: Check smooth and noise-free running of kinematics.
Check function.
