54 00... Greasing instructions for panorama glass roof

WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Use only RHF 1 lubricating grease (sourcing reference: BMW Parts Department) to grease the panorama glass roof. One packet contains 20 g and is enough for the entire roof.

NOTE: Remove the old grease without fail before applying the new grease. Apply grease only in the relevant area (new parts).

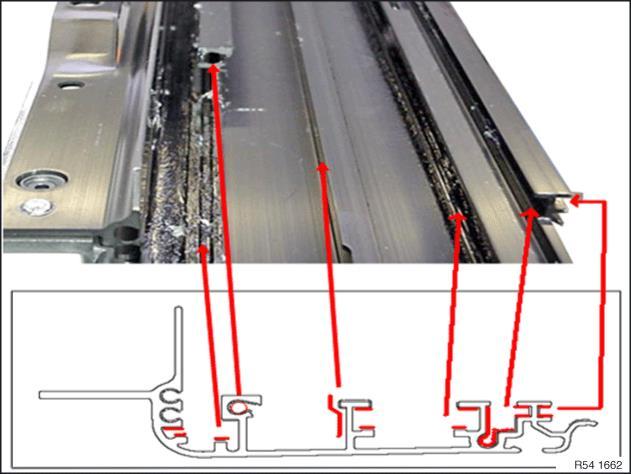

Fig 1: Apply Grease Only In The Relevant Area

G00497291

Courtesy of BMW OF NORTH AMERICA, INC.

Grease guide rail in marked area over entire length.

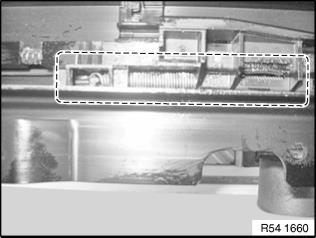

Apply grease to spring.

Fig 2: Apply Grease To Spring

G00497292

Courtesy of BMW OF NORTH AMERICA, INC.

Apply grease in area of wind deflector mechanism.

Fig 3: Apply Grease In Area Of Wind Deflector Mechanism

G00497293

Courtesy of BMW OF NORTH AMERICA, INC.

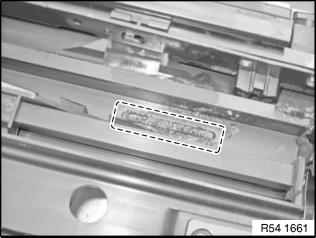

Apply grease to rail in area of recess.

Fig 4: Apply Grease To Rail In Area Of Recess

G00497294

Courtesy of BMW OF NORTH AMERICA, INC.

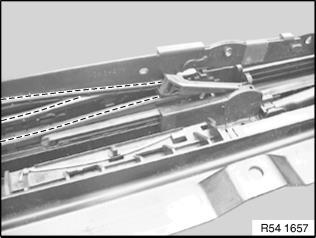

Using a brush, apply grease on both sides over entire length of guide points on mechanism.

Fig 5: Apply Grease On Both Sides Over Entire Length Of Guide Points

G00497295

Courtesy of BMW OF NORTH AMERICA, INC.

Grease rail in marked area over entire length with a brush.

Fig 6: Grease Rail In Marked Area Over Entire Length

G00497296

Courtesy of BMW OF NORTH AMERICA, INC.

Using a brush, apply grease between mechanism and rail.

Fig 7: Apply Grease Between Mechanism And Rail

G00497297

Courtesy of BMW OF NORTH AMERICA, INC.

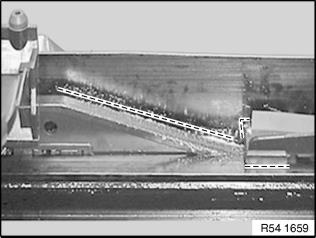

Apply grease to lower connecting link and surrounding area.

Fig 8: Grease Lower Connecting Link And Surrounding Area

G00497298

Courtesy of BMW OF NORTH AMERICA, INC.
