52 16 392 Removing and installing/replacing front left or right crash-active head restraint

WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Read and comply with safety regulations for handling airbag modules and pyrotechnical belt pretensioners. Incorrect handling may result in triggering of the crash-active head restraint and thereby cause injury. See 72 00 .. SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .

Switch off ignition!

Necessary preliminary tasks:

Disconnect battery negative lead. See 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .
Remove rear panel. See 52 13 198 Removing and Installing/Replacing Rear Panel On Left Or Right Front Seat Backrest (Normal/Semi-Electric) .

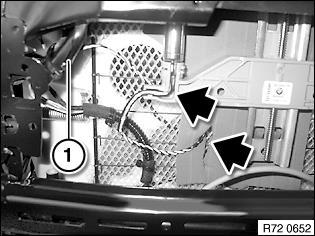

Unlock plug connection (1) and disconnect. Feed out wiring harness from head restraint height adjustment and foam material.

Fig 1: Unlock Plug Connection (1) And Disconnect

Courtesy of BMW OF NORTH AMERICA, INC.

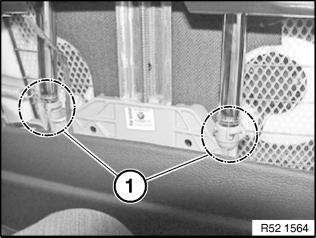

Lever out locking clamps (1)

Fig 2: Lever Out Locking Clamps (1)

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out head restraint.

Fig 3: Lift Out Head Restraint

Courtesy of BMW OF NORTH AMERICA, INC.
