51 16 ... Removing and installing/replacing locking rod for glovebox lid (from 09/09)

WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary tasks:

Remove locking mechanism for glovebox.
Close glovebox lid manually.

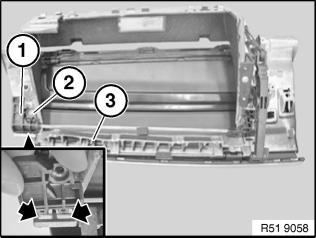

Release bolt (2) from locking rod mounting (1). Tightening torque, see 51 16 3AZ in 51 16 MIRRORS, FINISHERS, ASHTRAYS, CONSOLES . Installation: Correctly feed locking rod mounting (1) into glovebox casing (3).

Fig 1: Release Bolt (2) From Locking Rod Mounting (1)

Courtesy of BMW OF NORTH AMERICA, INC.

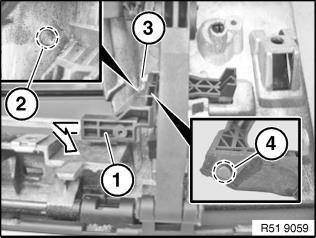

Move locking rod (1) in the direction of the arrow and feed out left and right, while watching out for the spring (3). Installation: Guide spring (3) onto locking rod retaining lug (4) and mount in casing recess.

Fig 2: Move Locking Rod (1) In The Direction Of The Arrow And Feed Out Left And Right

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement Check if the foam strip (2) of the locking rod (1) is still reusable. If necessary, replace foam strip (2).

Fig 3: Check If The Foam Strip (2) Of The Locking Rod (1) Is Still Reusable

Courtesy of BMW OF NORTH AMERICA, INC.
