51 11 185 Removing and installing/replacing side grille in bumper trim (from 03/2010)

WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 323 (Scraper)

IMPORTANT: Damage to paintwork! To avoid paint damage, tape off painted surface in lever area.

Unclip latch mechanisms (1) with special tool 00 9 3235 and remove ornamental grille (2) towards front. Installation note: Latch mechanisms (1) must not be damaged.

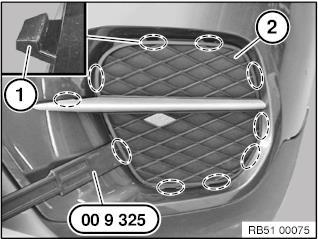

Fig 1: Unclip Latch Mechanisms (1) And Remove Ornamental Grille (2) Towards Front

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement: Modify trim bridge (1); to do so, unclip latch mechanism (2).

Installation note: Latch mechanism (2) on trim bridge should not be damaged.

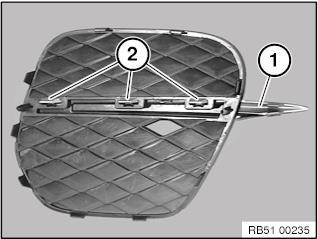

Fig 2: Modify Trim Bridge (1) By Unclipping Latch Mechanism (2)

Courtesy of BMW OF NORTH AMERICA, INC.
