34 11 552 Overhauling Left Or Right Front Brake Caliper (Brake Caliper Removed) Version 1

WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 316. See 00 9 310 ASSEMBLY WEDGES (SET IN PLASTIC CASE)

WARNING: In the following work step, large forces occur at the brake caliper piston (up to more than 2800 N). Risk of injury!

NOTE: Use repair kit, refer to BMW Parts Service.

Check guide sleeves (5), fitting repair-kit guide sleeve if necessary.

Fig 1: Check Guide Sleeves (5)

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully force piston out through connection bore with compressed air.

To protect piston, place a protective plate (e.g. hard wood or hard felt) in caliper recess.

Do not grip piston with fingers - risk of trapping!

Fig 2: Place A Protective Plate (Hard Wood Or Hard Felt) In Caliper Recess

Courtesy of BMW OF NORTH AMERICA, INC.

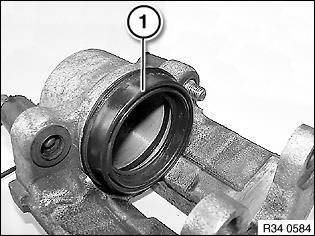

Press off dust sleeve (1).

Fig 3: Press Off Dust Sleeve (1)

Courtesy of BMW OF NORTH AMERICA, INC.

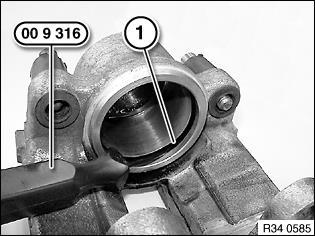

Carefully remove seal (1) with special tool 00 9 316. See 00 9 310 ASSEMBLY WEDGES (SET IN PLASTIC CASE)

Fig 4: Carefully Remove Seal (1)

Courtesy of BMW OF NORTH AMERICA, INC.

Clean cylinder bores and parts with alcohol and dry with compressed air.

Thoroughly inspect cylinder bore, piston and flange surfaces. Machining of cylinders and pistons is not permitted.

Install new seal.

Installation:

Apply a light coat of ATE brake cylinder paste to cylinder bore, piston and seal.

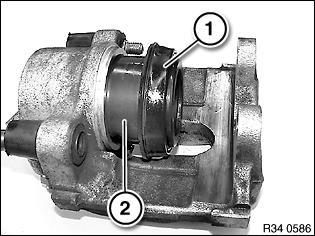

Fit dust sleeve (1) in annular groove of piston (2).

Fig 5: Fit Dust Sleeve (1) In Annular Groove Of Piston (2)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not twist brake piston.

Press piston into cylinder bore.

Evenly press dust sleeve (1) onto brake caliper housing as far as it will go.

Installation:

The area between the dust sleeve and the brake caliper housing must be kept dry. It must not come into contact with Ate brake cylinder paste or brake fluid so as to ensure that the dust sleeve is perfectly seated.
