33 21 000 Removing and installing/replacing left or right output shaft (screwed version)
WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove rear wheel.
- Remove rear axle final drive .
IMPORTANT:
Expand anti-twist lock sufficiently to avoid damaging thread when releasing collar nut.

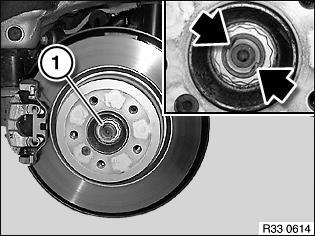

Release collar nut (1), activate parking brake for this purpose. Installation note: Replace collar nut, oil collar nut/wheel bearing contact surface only and tighten down. No oil permitted on thread of shaft journal or collar nut. Tightening torque, see 33 41 1AZ in 33 41 WHEEL BEARINGS . Secure collar nut by positive peening on flat areas of output shaft.
IMPORTANT:
Secure output shaft against falling out.
Press output shaft out of drive flange and remove towards centre of vehicle.
