31 60 535 Replacing Both Gaiters On Left And Right Of Output Shaft (Output Shaft Removed)

Grip output shaft (1) in vice with aluminum clamping jaws.

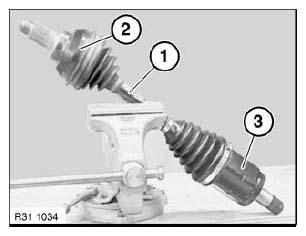

Fig 1: Identifying Output Shaft, Joint, Wheel And Transmission Side

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing gaiter of wheel-side joint:

Release Low Profile band clamp  (1) and band clamp (2). See 31 60... NOTES ON REMOVING AND INSTALLING LOW PROFILE BAND CLAMPS .

Pull back rubber gaiter (3).

Installation:

Feed gaiter (3) into groove of joint.

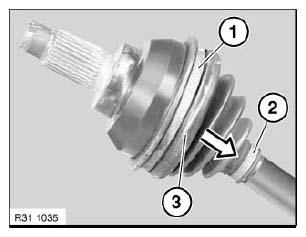

Fig 2: Pulling Rubber Gaiter

Courtesy of BMW OF NORTH AMERICA, INC.

Press off joint (1) via contact pressure of retaining ring on shaft (2).

Installation:

Push on joint until retaining ring can be heard to snap into place.

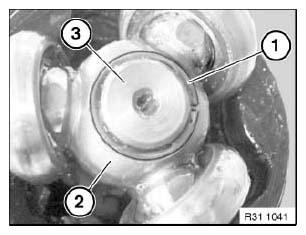

Fig 3: Identifying Joint And Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out retaining ring (1).

Installation:

Replace retaining ring (1).

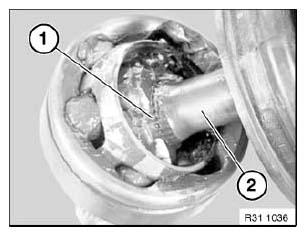

Fig 4: Identifying Retaining Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off gaiter (1) over shaft (2).

Carefully clean all parts with a cloth.

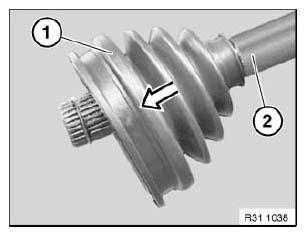

Fig 5: Pulling Off Gaiter

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing gaiter of transmission-side joint:

Release band clamps (1, 2).

Pull back rubber gaiter (3).

Detach tulip element (4).

Installation:

Feed gaiter (3) into groove of tulip element (4).

Align band clamp (1) so that hook fastener is as at flat end of tulip element (4).

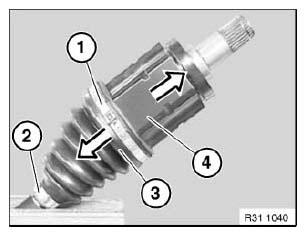

Fig 6: Releasing Band Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Remove retaining ring (1).

Installation:

Replace retaining ring (1).

Detach tripod element (2) from shaft (3).

Pull off gaiter over shaft (3).

Carefully clean all parts with a cloth.

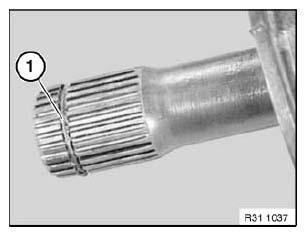

Fig 7: Identifying Retaining Ring, Tripod Element And Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Flat side (2) of tripod element (1) must point to retaining ring.

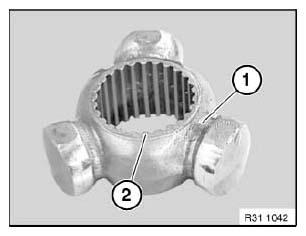

Fig 8: Identifying Flat Side And Tripod Element
