Strut With Coil Spring: Removal

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Remove swivel bearing. See SWIVEL BEARING .
If no centering pin is fitted, mark position of studs in relation to wheel arch.
Secure spring strut from falling out. Remove strut-to-wheel arch nuts. See Fig 1.
Remove spring strut downwards out of wheel arch.

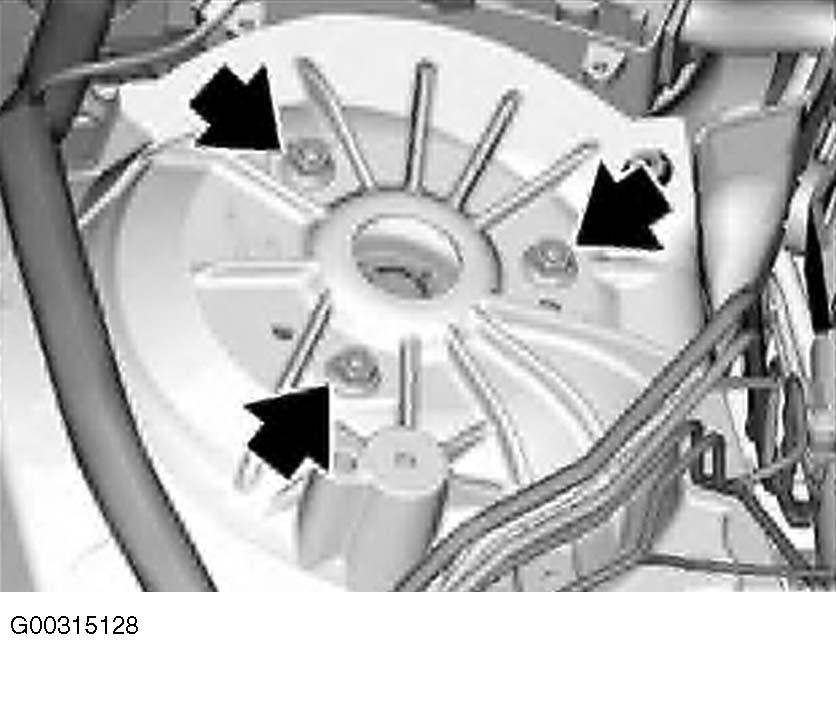

Fig 1: Locating Spring Strut Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
