Steering Spindle Lower Section: Removal

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move steering gear to straight-ahead position and turn ignition key to "0" position. Remove steering gear cover on both sides.
  2. Remove clamping screw. Remove lower section of steering spindle from power steering gear. See Fig 1.
  3. Working under dash, remove trim panel for pedal assembly. Mark position of universal joint in relation to steering column.
  4. Turn ignition key to "1" position. Turn steering wheel about 45 degrees. Hold securely and release clamping screw (1). See Fig 2.
  5. Turn steering wheel back to straight-ahead position and turn ignition key to "0" position. Remove lower section of steering spindle from steering column.

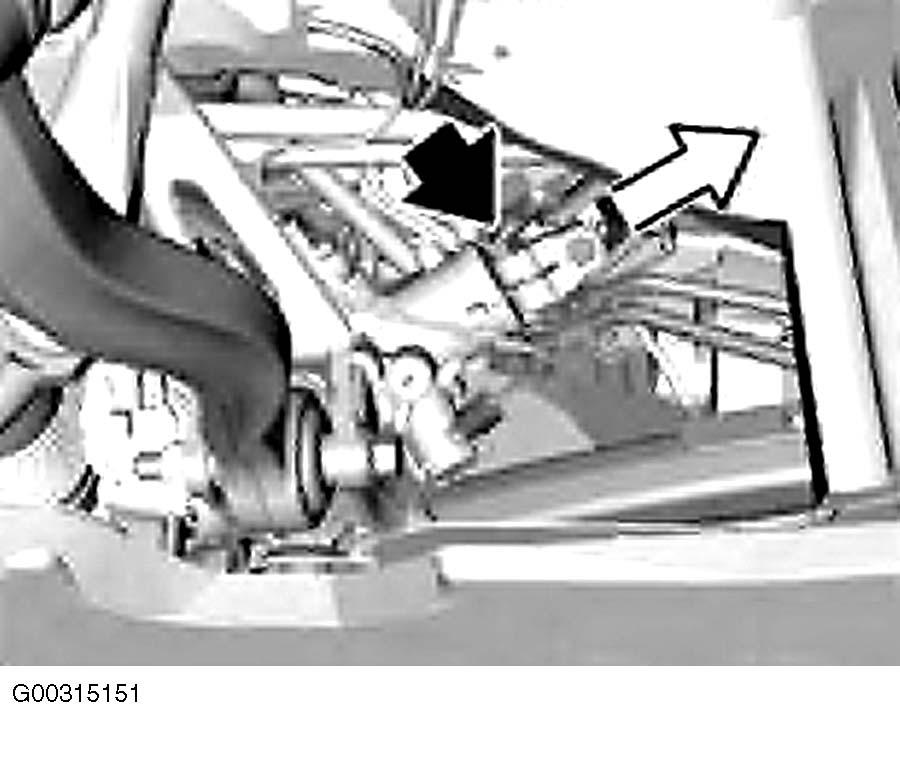

Fig 1: Removing Lower Section Of Steering Spindle From Power Steering Gear
G00315151Courtesy of BMW OF NORTH AMERICA, INC.
Fig 2: Removing Lower Section Of Steering Spindle
G00315152Courtesy of BMW OF NORTH AMERICA, INC.
