Steering Spindle Lower Section: Installation

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

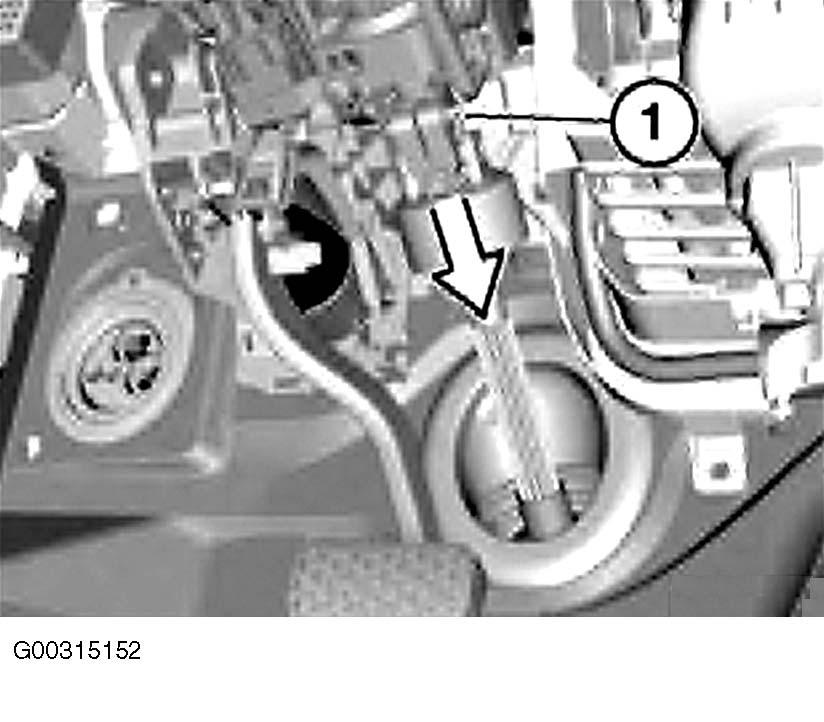

  1. To install, reverse removal procedure. Replace clamping screw (1). See Figure. Steering spindle lower section and steering gear can only be joined in one position. Clamping screw must rest in groove of steering column. Make sure universal joint is correctly seated. Tighten universal joint coupling to steering gear/steering spindle to specification. See TORQUE SPECIFICATIONS .
  2. If necessary, carry out initial operation for Active Front Steering (AFS). See INITIALIZING ACTIVE FRONT STEERING (AFS)  under ADJUSTMENTS.
  3. If necessary, carry out initial operation for Dynamic Drive. See INITIALIZING DYNAMIC DRIVE  under ADJUSTMENTS.
