Rear Fuse Holder

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2007 BMW M5, 2007 BMW 550i, 2007 BMW 530xi, 2007 BMW 530i, and 2007 BMW 525xi. However, it is still accessible from the selected car via links, so may be relevant.

On sedans, rear fuse holder is located on right side of luggage compartment. See Fig 1. On station wagon models, rear fuse holder is located on right rear side. See Fig 2. Rear fuse holder contains the following:

F90 - 200 Amp - Front fuse holder.
F91 - 100 Amp - Integrated supply module, valve timing (545i).
F92 - 100 Amp - Electric auxiliary heater.

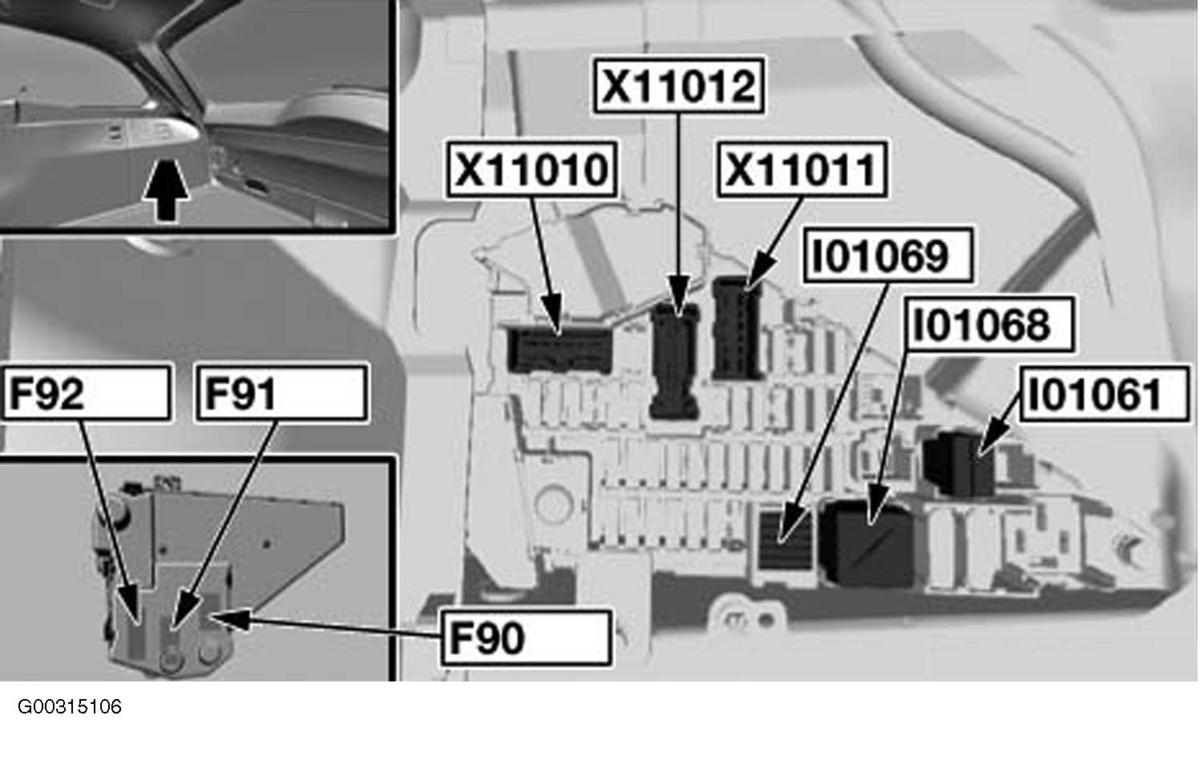

Fig 1: Locating Sedan Rear Fuse Holder

Courtesy of BMW OF NORTH AMERICA, INC.

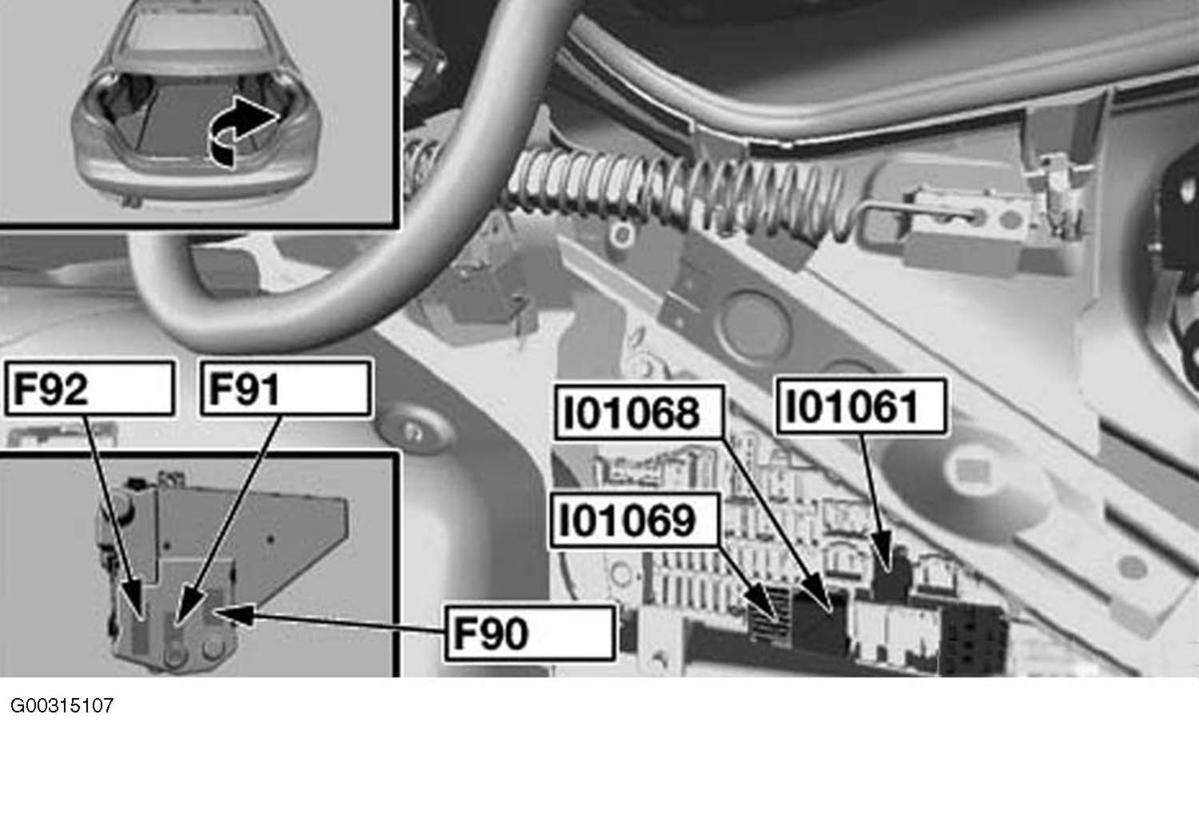

Fig 2: Locating Station Wagon Rear Fuse Holder

Courtesy of BMW OF NORTH AMERICA, INC.
