Exhaust Manifold: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove right oxygen control sensor. See OXYGEN CONTROL SENSOR  .
  2. Remove right oxygen monitor sensor. See OXYGEN MONITOR SENSOR  .
  3. Remove complete exhaust system. See EXHAUST SYSTEM  .
  4. Remove acoustic cover. Using Special Tool (51 2 180), secure engine hood in service position. Assemble Special Tool (00 0 200) with Special Tools (00 0 201/202/203/204/208/ and attach. See Fig 1 . Secure Special Tool (11 0 000) to front and rear lifting eyes and to Special Tool (00 0 200). Supports (1) of Special Tool (00 0 208) must rest on bolt connection of both side walls.
  5. Tighten screws (1 and 2). See Fig 2 .
  6. Remove air cleaner element. Release retaining screws on coolant expansion tank. Remove screws and remove intake filter housing (1). See Fig 3 .
  7. Lower front axle support. See LOWERING FRONT AXLE SUPPORT  .
Fig 1: Installing Engine Lifting Tool
G00162763Courtesy of BMW OF NORTH AMERICA, INC.
Fig 2: Locating Support Screws
G00162764Courtesy of BMW OF NORTH AMERICA, INC.

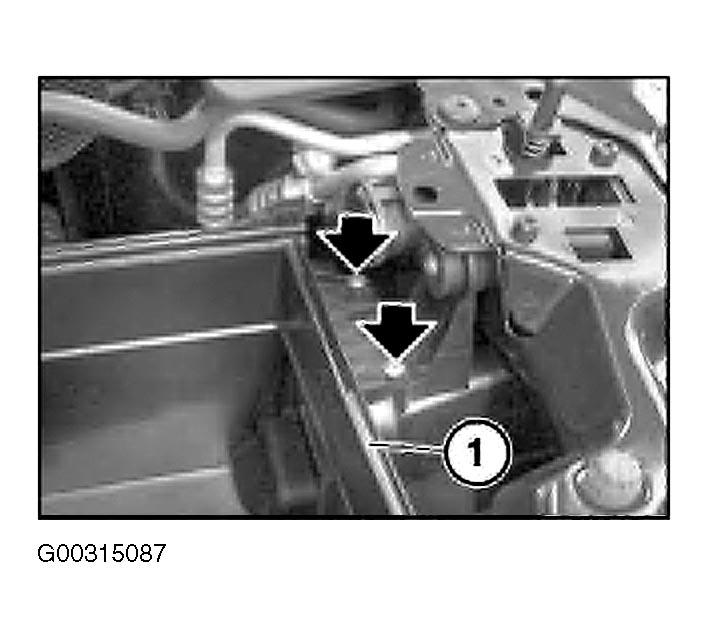

Fig 3: Removing Intake Filter Housing
G00315087Courtesy of BMW OF NORTH AMERICA, INC.
