64 11 839 Replacing actuator drive of footwell flap

WARNING: This page is about a different car, the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, and 2007 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove RIGHT GLOVEBOX WITH HOUSING .

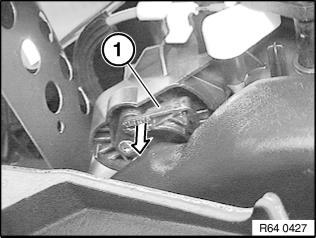

Unhook adjusting lever (1).

Fig 1: Unhook Adjusting Lever (1

Courtesy of BMW OF NORTH AMERICA, INC.

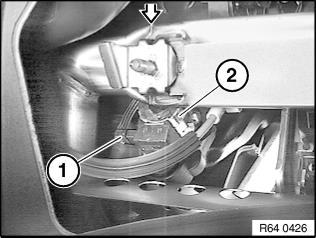

Disconnect plug connection (1). Unlock actuator drive (2) and feed out towards rear.

Fig 2: Unlock Actuator Drive (2) And Feed Out Towards Rear

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note: If necessary, align shaft for footwell flap and drive (see illustration).

Fig 3: Align Shaft For Footwell Flap And Drive

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement: Servomotors must be re-addressed in the event of replacement! Addressing can only be carried out with the BMW diagnosis system. Service functions: Body, Heating and air conditioning function, Flap motors, Re-address flap motors.
