Wiring Diagrams

WARNING: This page is about a different car, the 2004 BMW Z4 and 2003 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

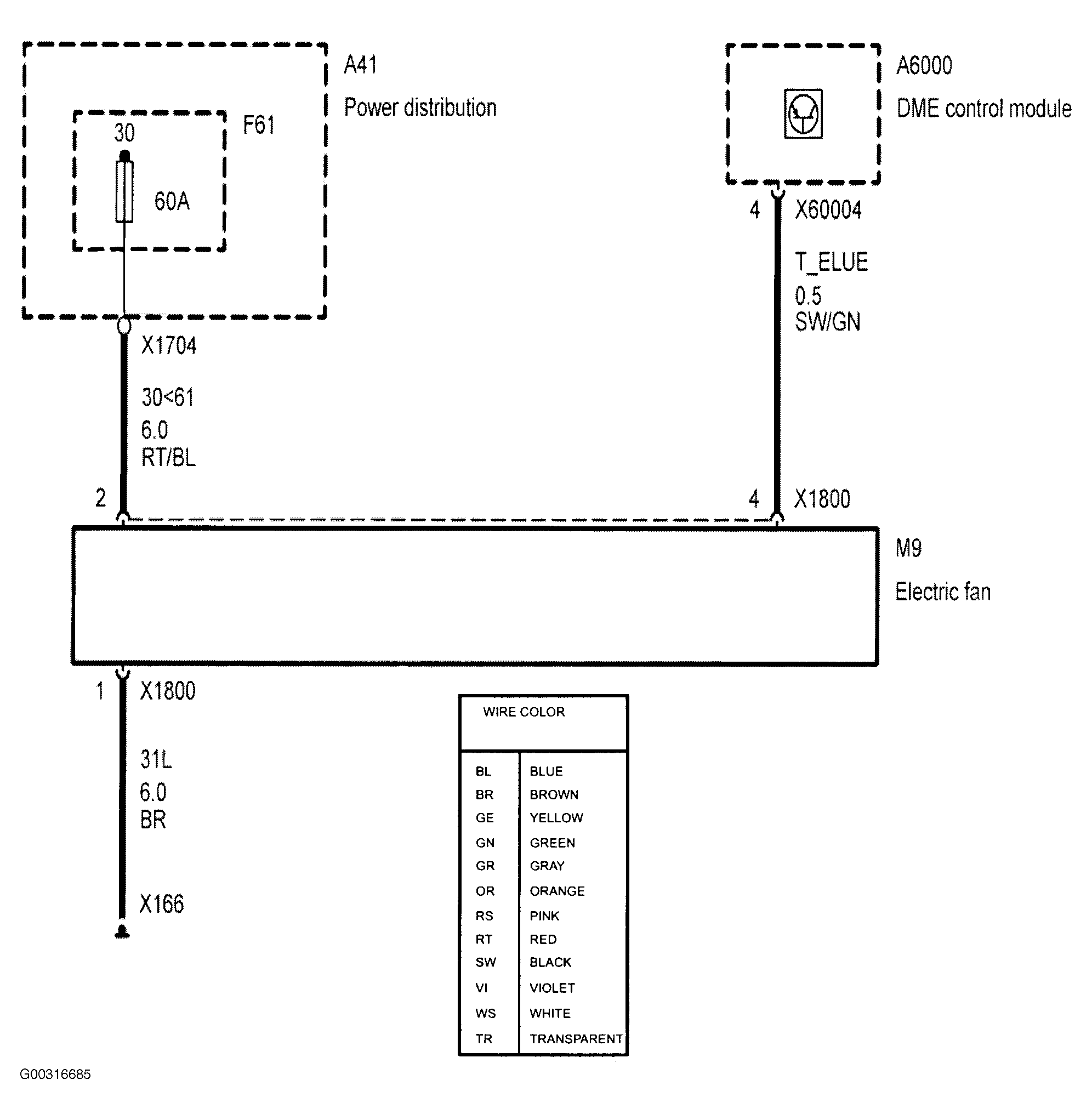

Fig 1: Electric Cooling Fan Wiring Diagram
G00316685Courtesy of BMW OF NORTH AMERICA, INC.
