Removal & Installation
WARNING: This page is about a different car, the 2004 BMW Z4 and 2003 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

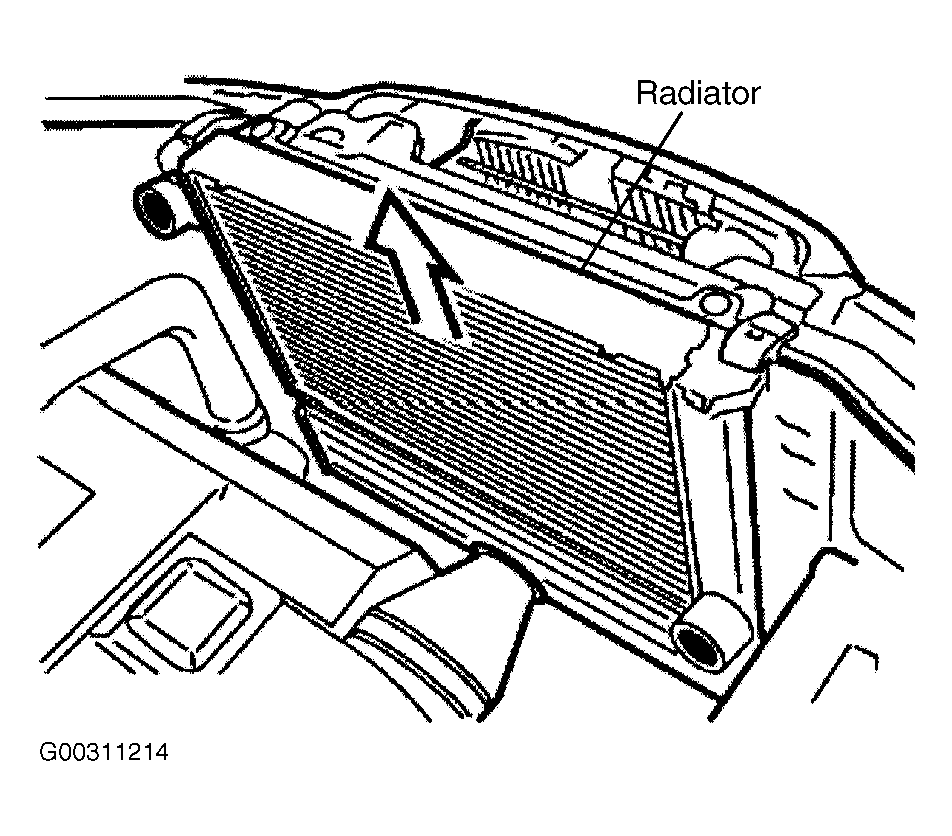

Remove radiator cover. See RADIATOR COVER . Remove fan cowl. See FAN COWL . Drain off coolant. If installed, remove heat exchanger for automatic transmission fluid. On all models, remove coolant expansion tank. Unlock coolant hoses and detach. See COOLANT HOSE FAST RELEASE COUPLINGS . Lift radiator out of mountings. See Fig 1 . To install, reverse removal procedure.
