Removal & Installation
WARNING: This page is about a different car, the 2004 BMW Z4 and 2003 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

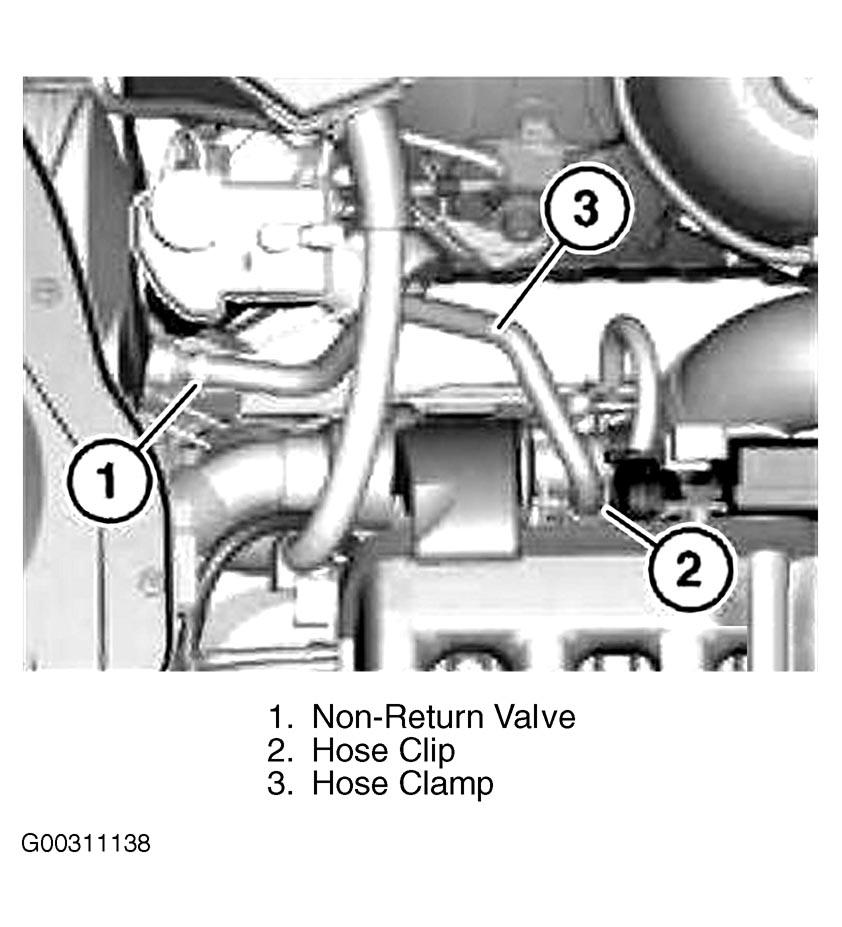

- Before beginning work, fully press the brake pedal several times to reduce the vacuum pressure in the brake booster. This makes it easier to detach the vacuum hose. The non-return valve and the molded hose are permanently connected to each other and are replaced as a single unit. Pull non-return valve (1) out of brake booster. Open hose clip (2). Pull off vacuum hose (3). See Fig 1 .
- To install, reverse removal procedure. Check seal for non-return valve and replace if necessary. Replace hose clamp (2).
