Center Console: Removal

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using Special Tool (00 9 341), unclip rear insert (1) at retaining points (2) and pull back in direction of arrow. See Fig 1. Disconnect plug connections and remove rear insert (1).
  2. Detach clips (1) for rear fresh air grill in direction of arrow. See Fig 2. Remove rear fresh air grill (2) in direction of arrow and unlock plug connection (3) underneath.
  3. Apply parking brake. Place transmission in neutral. It is not necessary to remove shift knob but removing it makes removing shift lever trim easier. To remove knob (1), pull off with a forceful jerk. Do NOT twist knob on automatic transmission as this would shear off turning lock. See Fig 3. Press sides of shift lever cover (2) together and feed out towards top. Using Special Tool (00 9 341), unclip trim for shift lever (4) from mounting points (3). Disconnect plug connections and remove trim for shift lever (4) towards top.
  4. Lever out trim (1) on left and right at rear end. See Fig 4. Pull out in direction of arrow.
  5. Remove screws (1) on center console at rear. See Fig 5. If necessary, unlock plug connections.
  6. Remove parking brake lever gaiter on center console (2). See Fig 6. Remove screws (1) on left and right. Lift center console (2) at rear. Feed through parking brake lever towards bottom and unlock plug connections below center console.
  7. If necessary, unclip button unit (1) with Special Tool (00 9 341) at retaining points (2) and lever out in direction of arrow. See Fig 7. Unlock and disconnect associated plug connection. Remove button unit (1).
  8. Lift center console at rear and, at the same time, pull towards rear and feed out from parking brake lever. Remove center console.

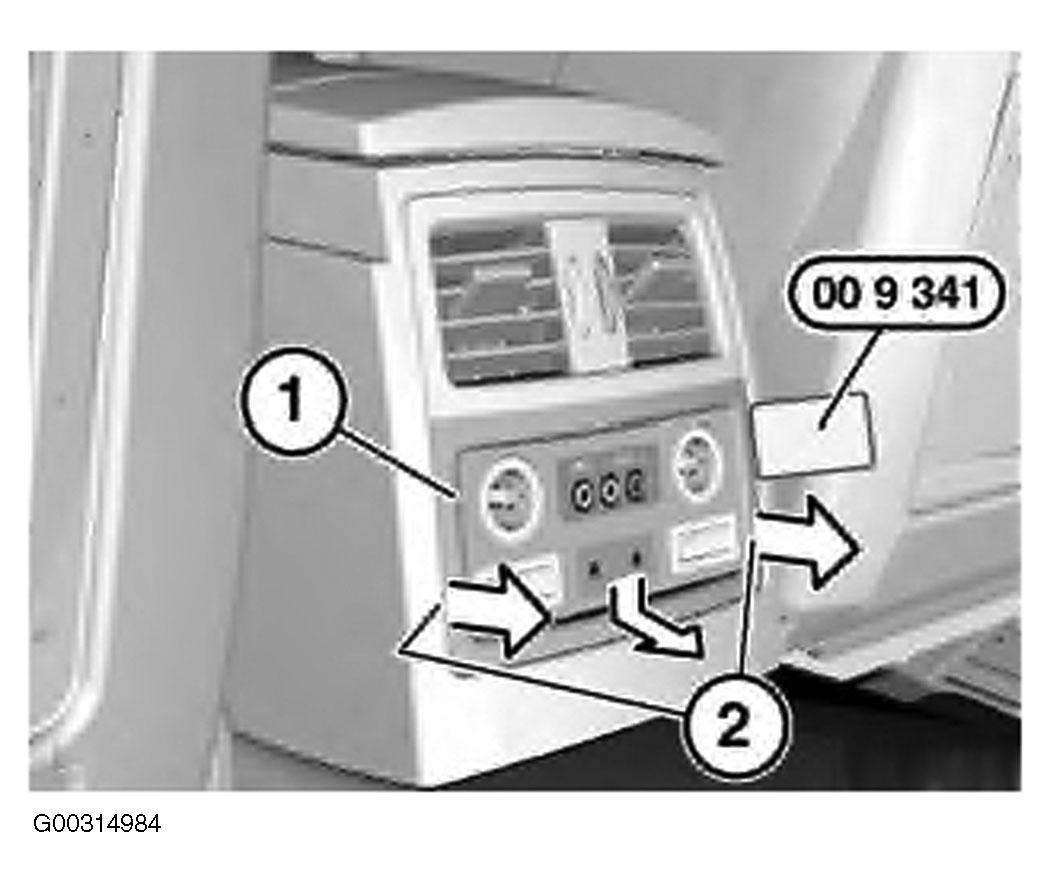

Fig 1: Removing Rear Insert
G00314984Courtesy of BMW OF NORTH AMERICA, INC.
Fig 2: Removing Rear Fresh Air Grill
G00314985Courtesy of BMW OF NORTH AMERICA, INC.

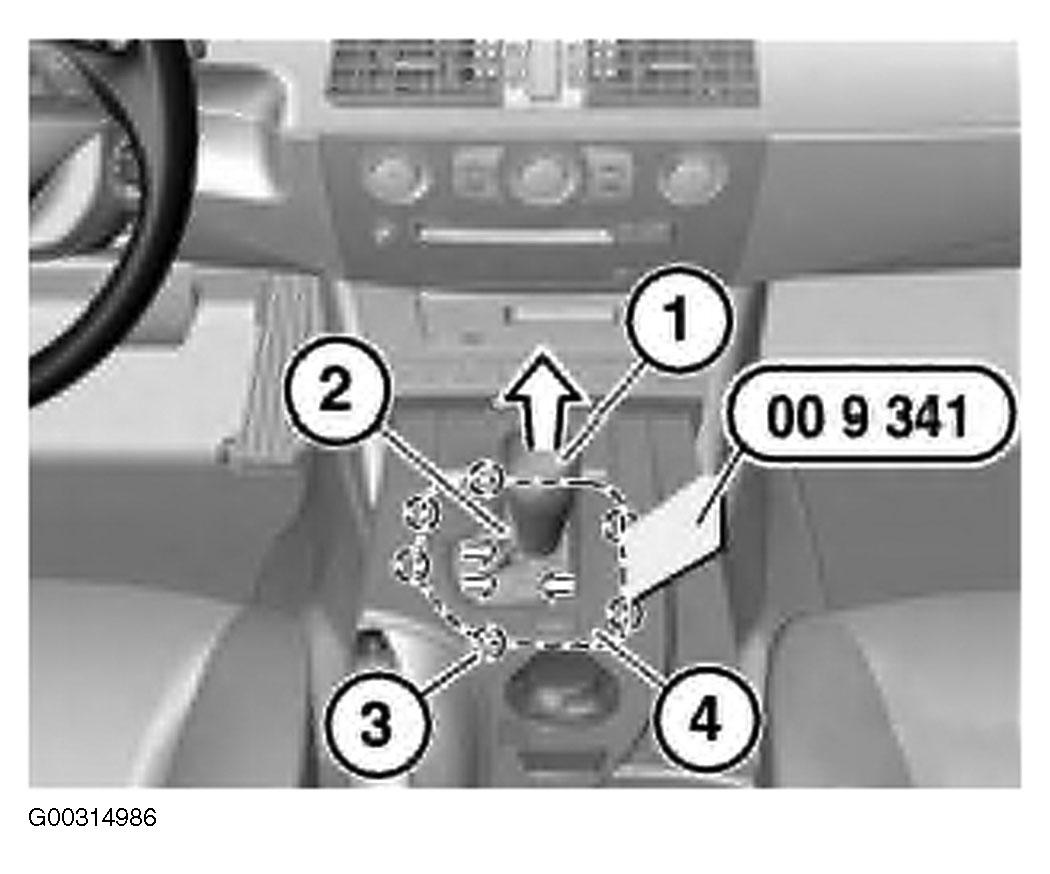

Fig 3: Removing Shift Lever Trim
G00314986Courtesy of BMW OF NORTH AMERICA, INC.

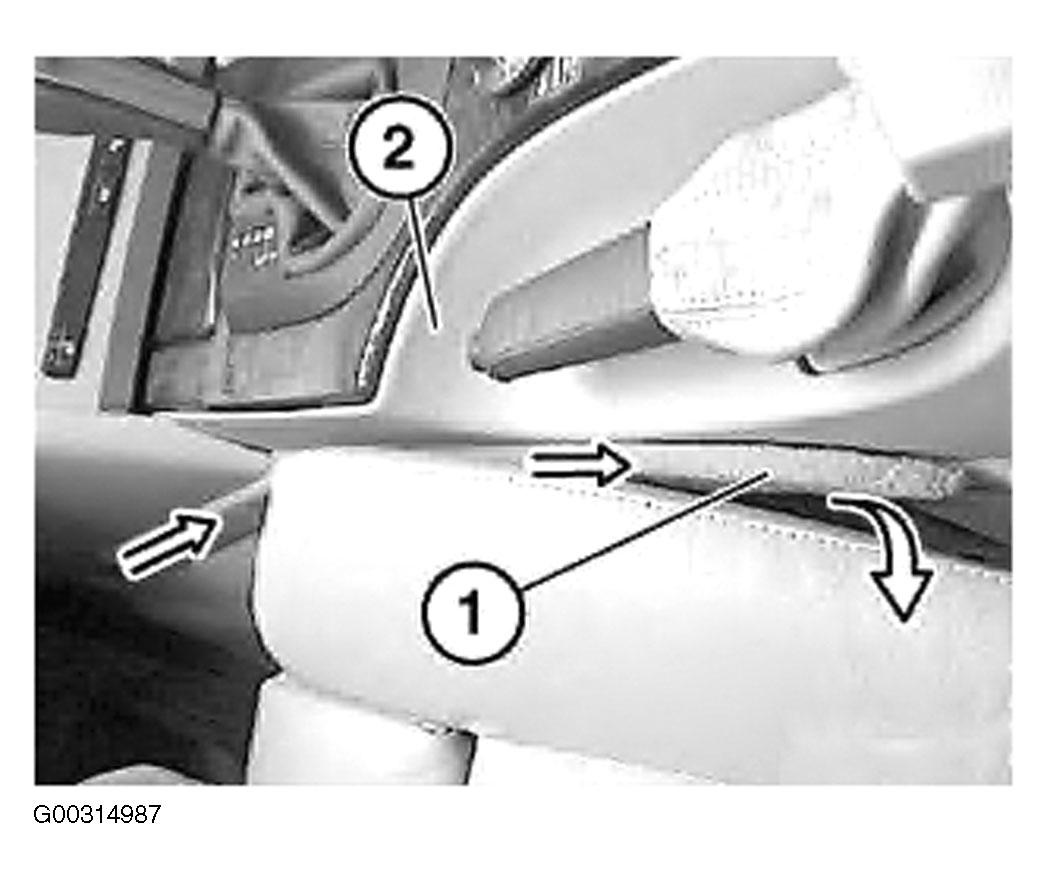

Fig 4: Levering Out Center Console Trim
G00314987Courtesy of BMW OF NORTH AMERICA, INC.

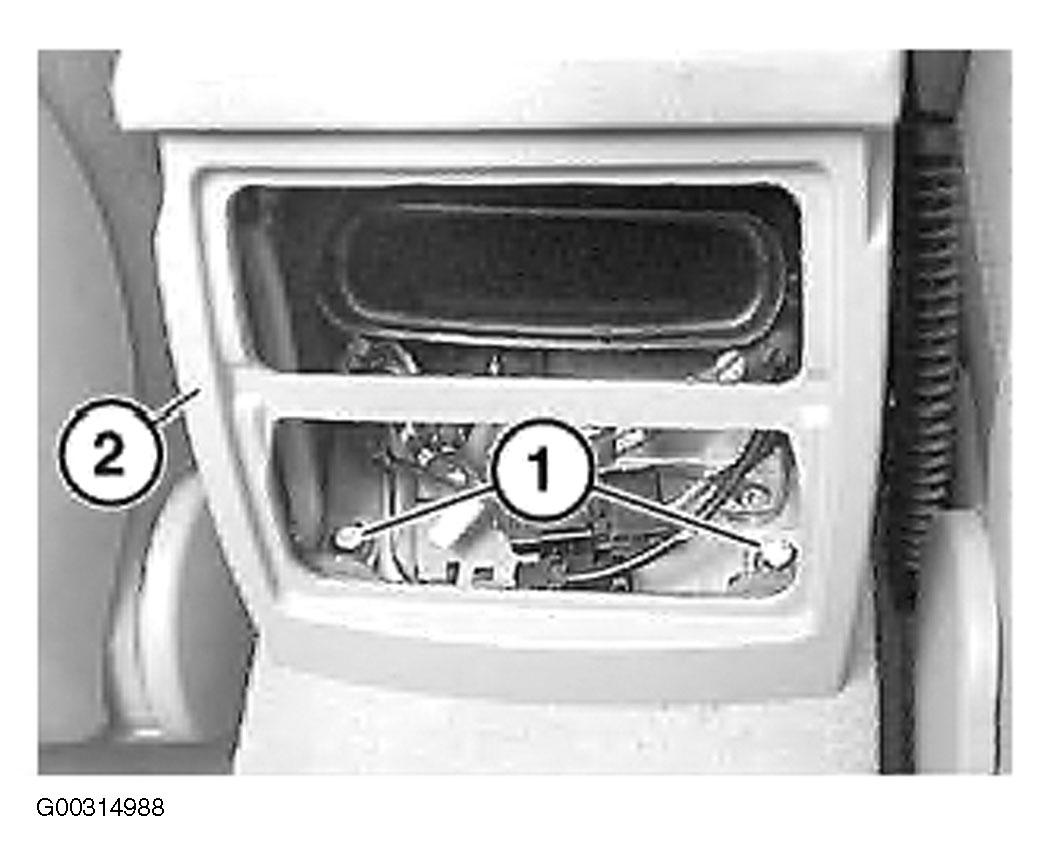

Fig 5: Removing Screws On Rear Storage Tray
G00314988Courtesy of BMW OF NORTH AMERICA, INC.

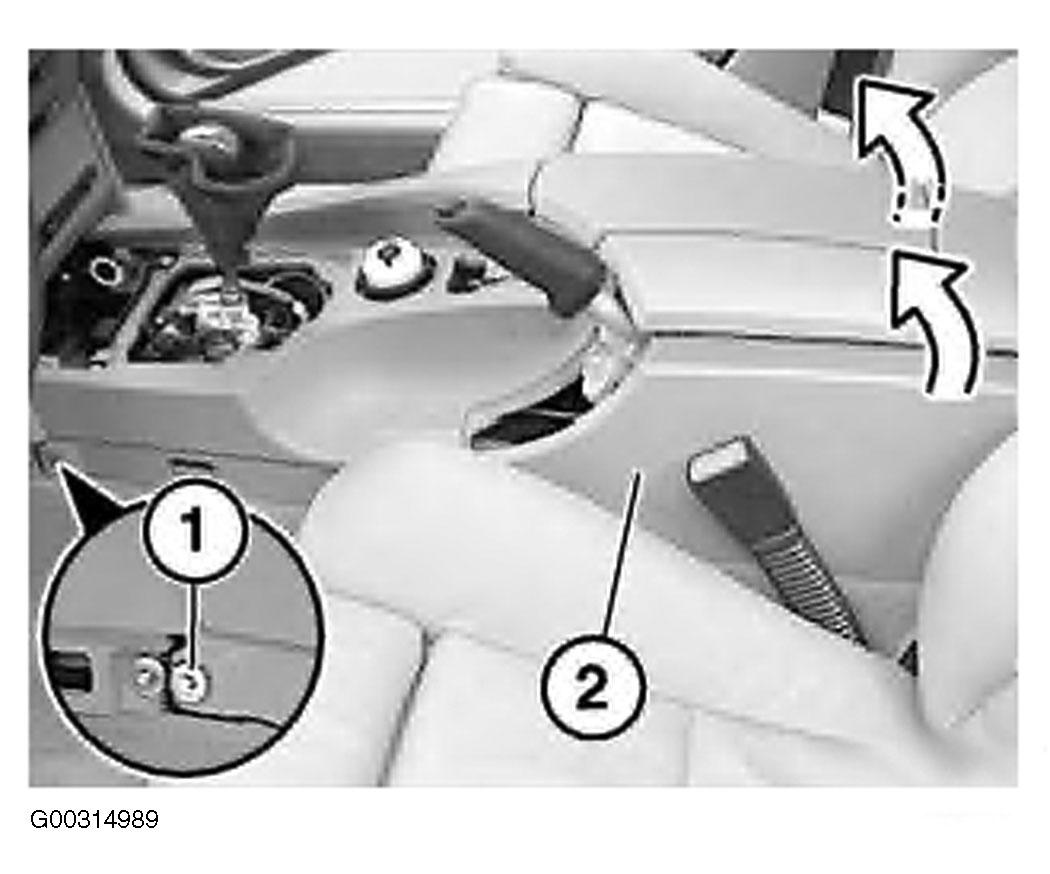

Fig 6: Removing Center Console
G00314989Courtesy of BMW OF NORTH AMERICA, INC.

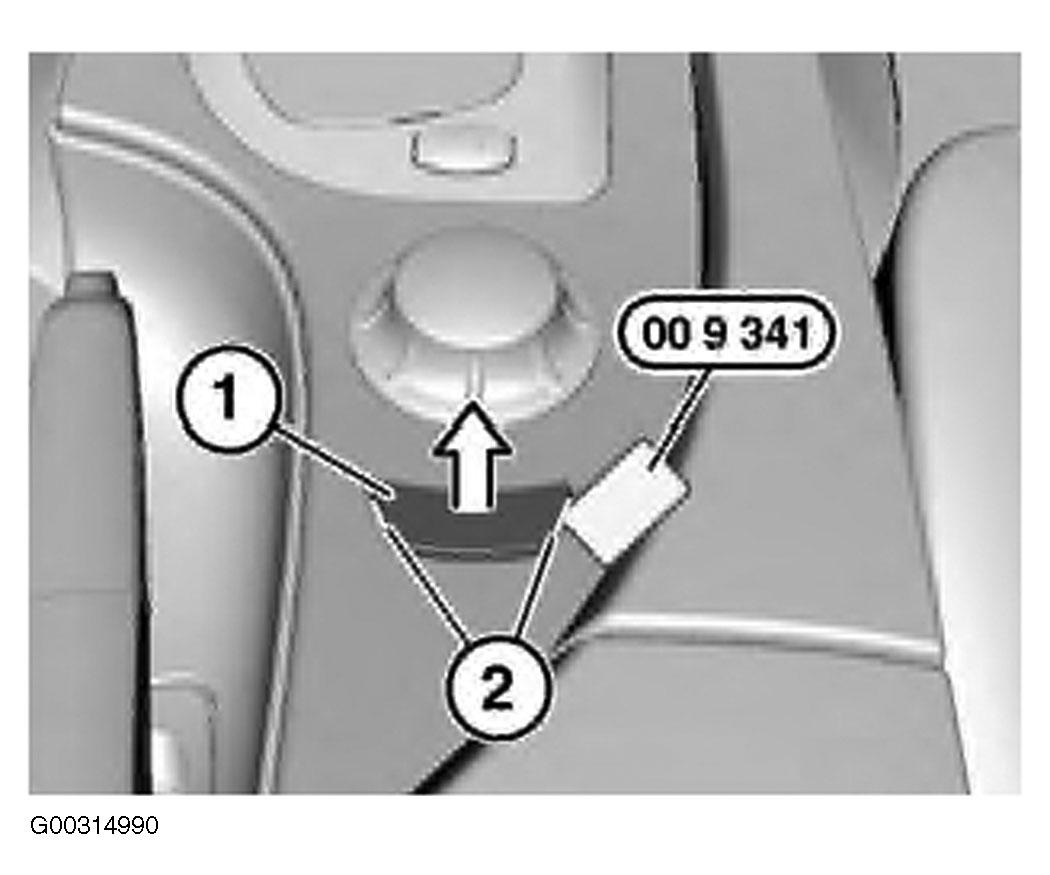

Fig 7: Removing Button Unit
G00314990Courtesy of BMW OF NORTH AMERICA, INC.
