Brake Linings (Front): Removal

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove wheels.
  2. Lever out retaining spring (1) in direction of arrow towards rear. See Fig 1.
  3. Remove plastic plugs (1). See Fig 2. Lift brake hose out of bracket.
  4. On left side, pull brake lining wear sensor (1) towards rear out of lining. See Fig 3. If necessary, replace brake lining wear sensor. See BRAKE LINING SENSOR . Release guide screws (2) with Special Tool (34 1 080). Withdraw brake caliper backwards.
  5. Press back brake linings and piston with Special Tool (34 6 320). See Fig 4. When forcing piston back, pay attention to brake fluid level in expansion tank. Brake fluid that spills over will damage paint.
  6. Press brake linings inward and remove. See Fig 5. The two brake linings are seated with a spring in the piston or on the brake caliper housing and must not be mixed up. Mark any worn brake linings. In case of one-sided brake lining wear, do not change brake linings around.
Fig 1: Levering Out Retaining Spring
G00302291Courtesy of BMW OF NORTH AMERICA, INC.

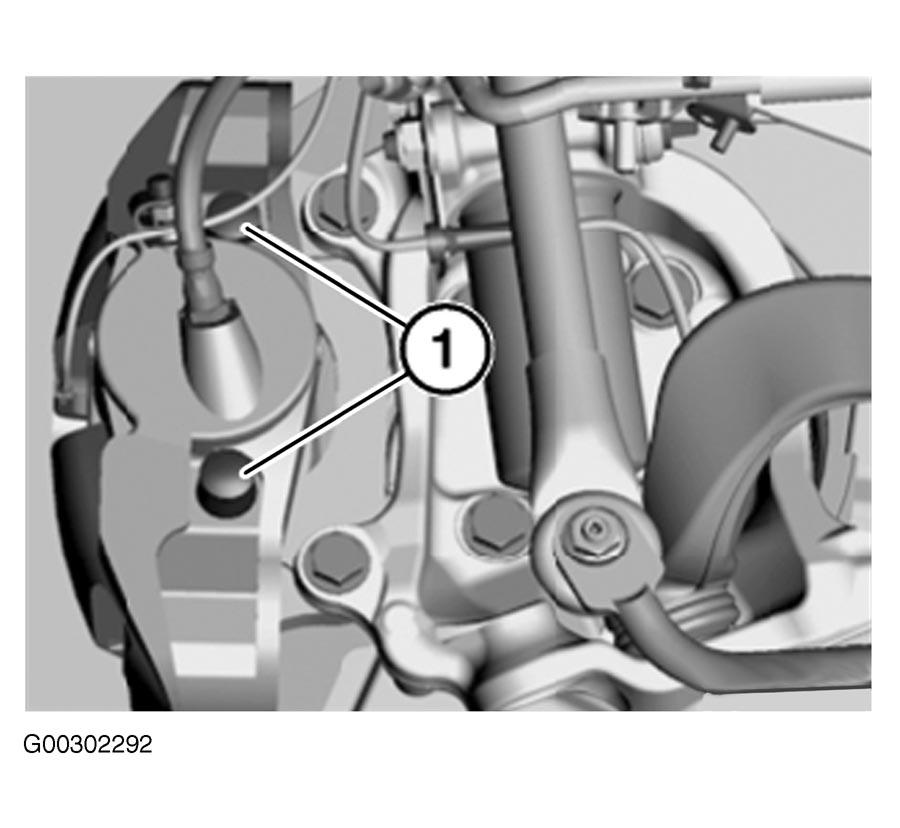

Fig 2: Removing Plastic Plugs
G00302292Courtesy of BMW OF NORTH AMERICA, INC.

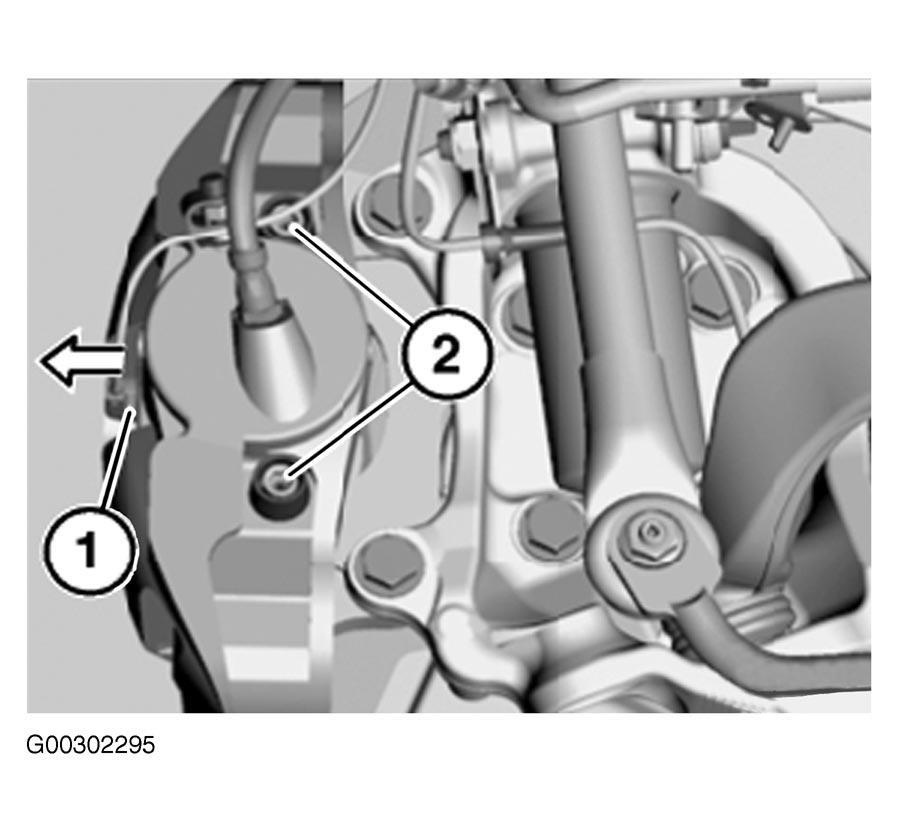

Fig 3: Removing Brake Lining Wear Sensor
G00302295Courtesy of BMW OF NORTH AMERICA, INC.

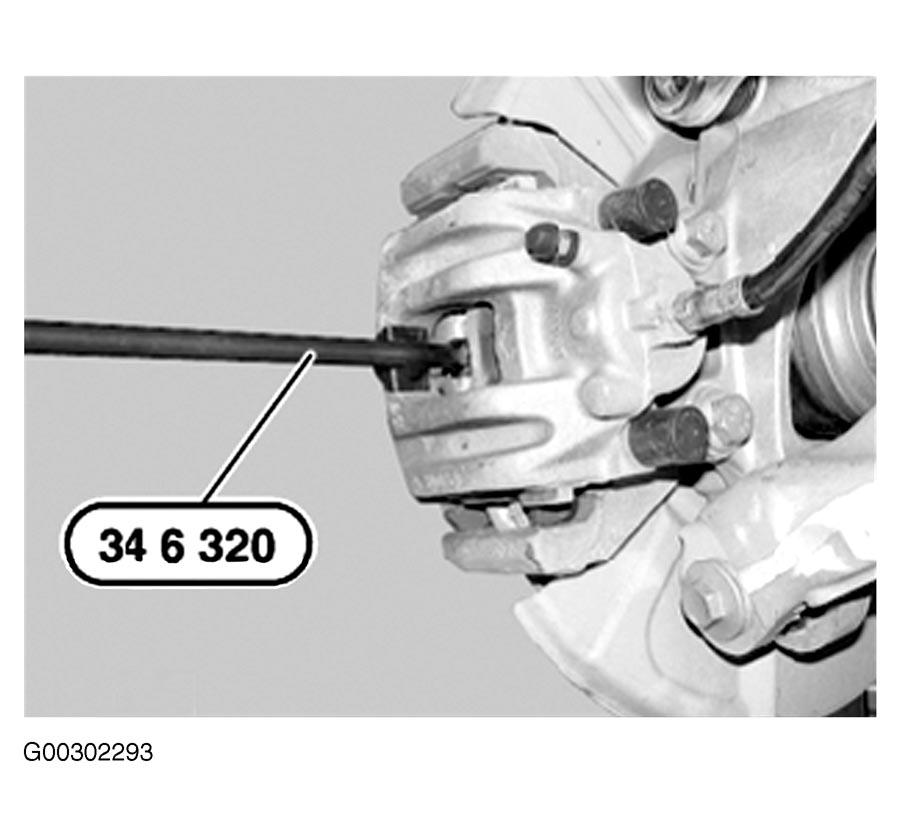

Fig 4: Pressing Back Brake Linings
G00302293Courtesy of BMW OF NORTH AMERICA, INC.

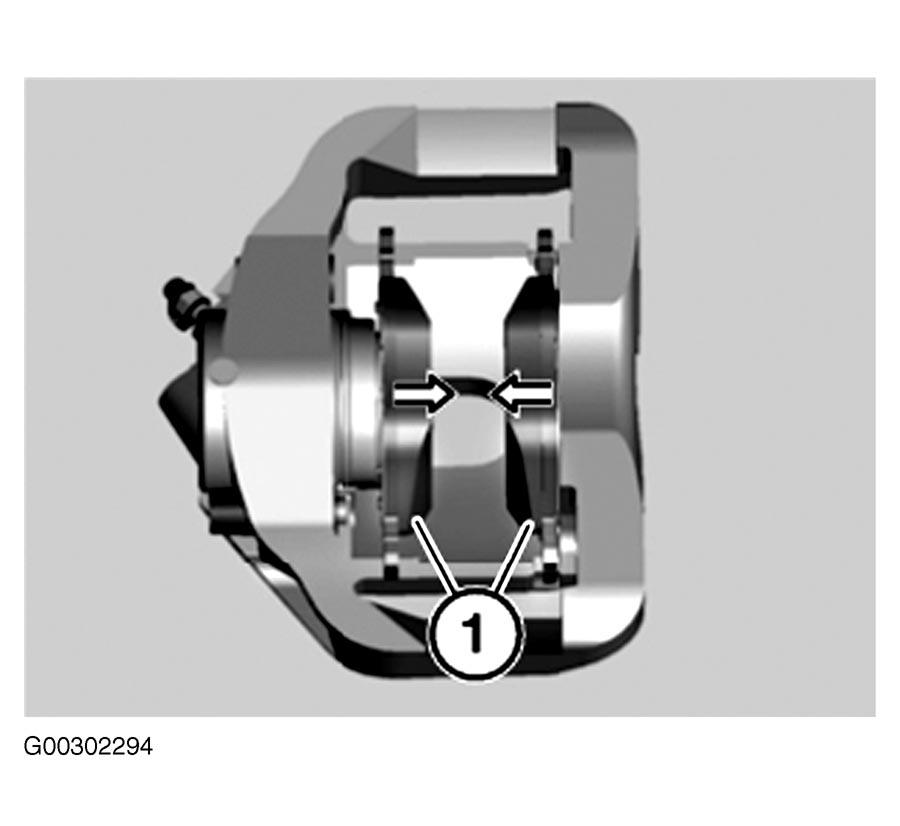

Fig 5: Removing Brake Linings
G00302294Courtesy of BMW OF NORTH AMERICA, INC.
