Removal & Installation

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open cover (1) on plug housing (3). See Fig 1. Unclip lead of brake lining sensor (2) from plug housing (3). Disconnect plug connection of lead from brake lining sensor (2). Feed lead from brake lining sensor out of fixtures.
  2. Press clip (1) together and detach brake lining sensor (2) from brake caliper (3) in direction of arrow. See Fig 2.
  3. To install, reverse removal procedure. Make sure clip (1) and brake lining sensor (2) are correctly seated in brake caliper (3). See Fig 2.

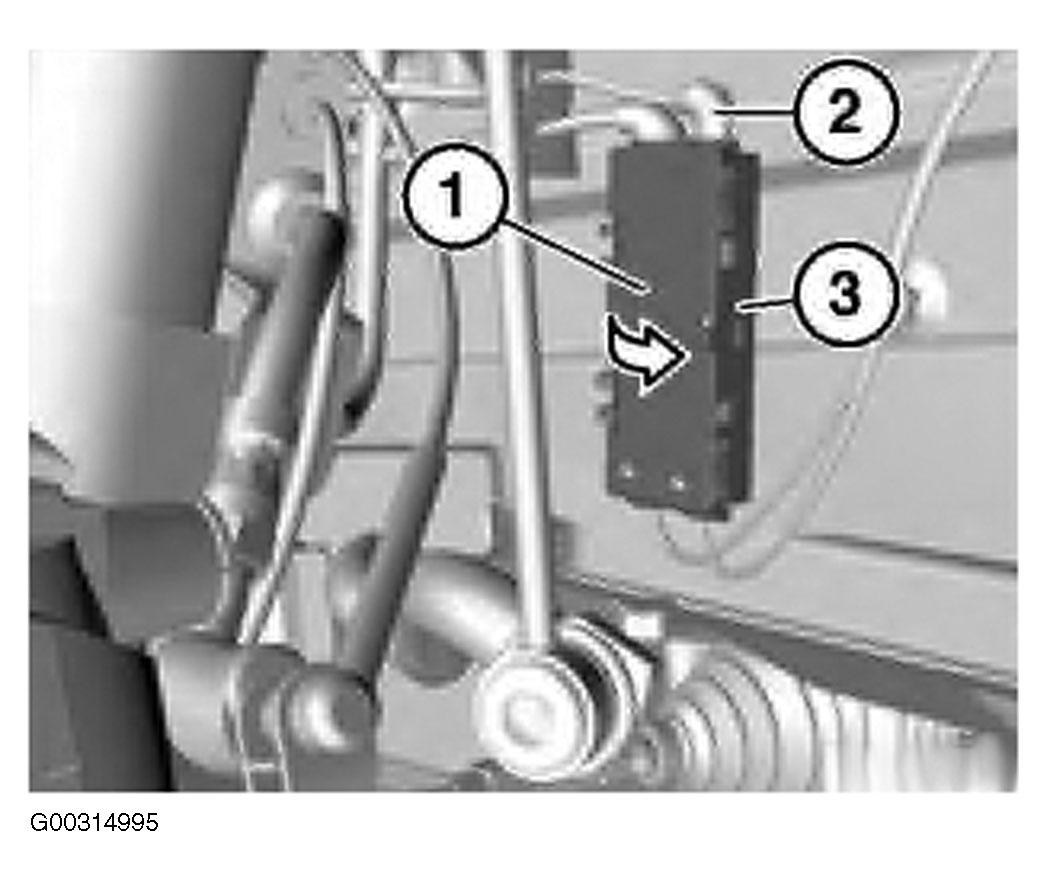

Fig 1: Removing Brake Lining Sensor
G00314995Courtesy of BMW OF NORTH AMERICA, INC.

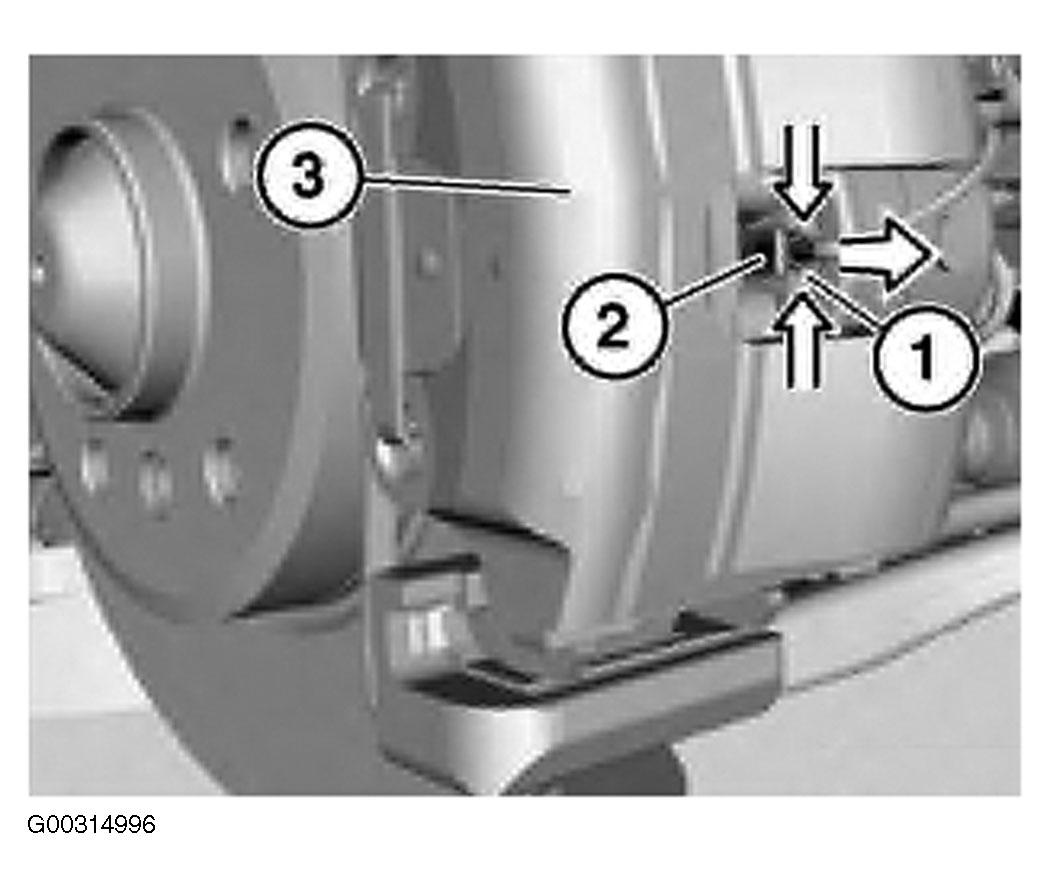

Fig 2: Detaching Brake Lining Sensor From Brake Caliper
G00314996Courtesy of BMW OF NORTH AMERICA, INC.
