Removal & Installation

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Remove brake master cylinder. See BRAKE MASTER CYLINDER .
Detach locking clip (1) from brake pedal. See Fig 1. Disengage and pull out locking pin. Remove nuts (2).
Remove non-return valve (1) from brake booster. See Fig 2. Carefully pull brake booster (2) out of bulkhead and tilt out.
To install, reverse removal procedure. Replace self-locking nuts and tighten to specification. See TORQUE SPECIFICATIONS .

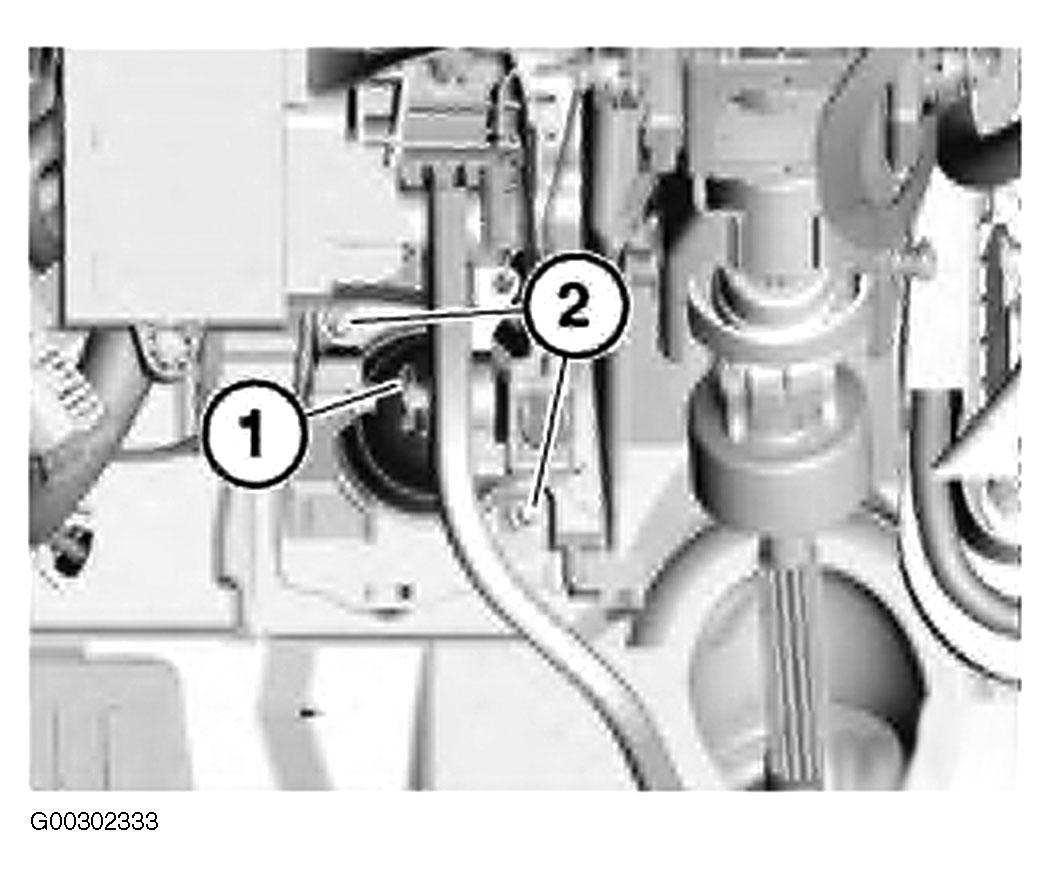

Fig 1: Detaching Locking Clip From Brake Pedal

Courtesy of BMW OF NORTH AMERICA, INC.

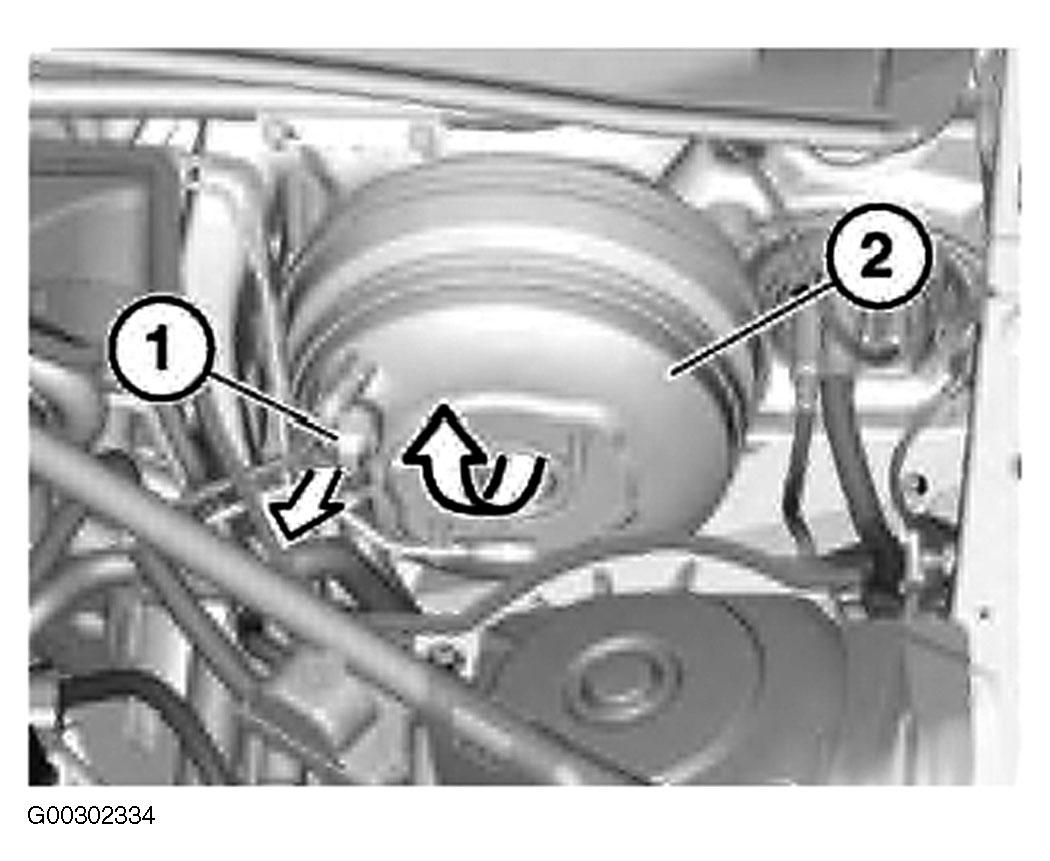

Fig 2: Removing Brake Booster

Courtesy of BMW OF NORTH AMERICA, INC.
