65 77 ... Overview of Sensors For Airbag System (ISIS)

WARNING: This page is about a different car, the 2006 BMW 760i, 2005 BMW 760i, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

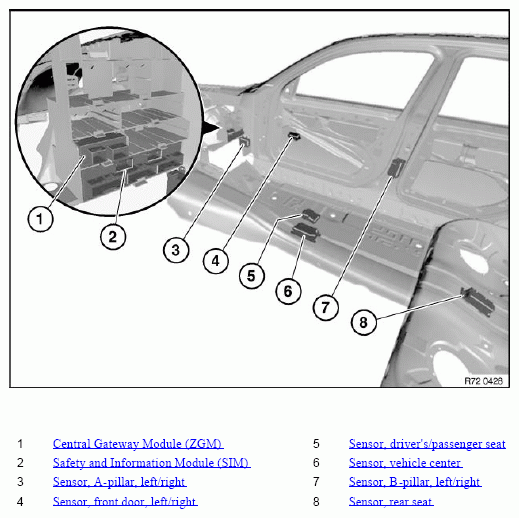

Fig 1: Identifying Overview Of Sensors For Airbag System (ISIS)
G04773012Courtesy of BMW OF NORTH AMERICA, INC.
