61 61 270 Removing And Installing Complete Wiper Console

WARNING: This page is about a different car, the 2006 BMW 760i, 2005 BMW 760i, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Remove cowl panel cover from windshield.

Remove left fresh air duct.

Unlock plug (1) and detach.

Release screws.

Remove wiper bracket (2).

Fig 1: Identifying Plug And Wiper Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Wiper bracket (1) must rest by its own weight flat on all mounting points (2).

Fig 2: Identifying Wiper Bracket On Mounting Points

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install screws in sequence 1 to 3 and tighten hand-tight.

You should be able to install all screws without having to exert effort or twisting the wiper bracket. If the tolerance compensation in the sleeves is insufficient or the wiper bracket does not rest flat by its own weight alone on all the mounting points, the wiper bracket and the body must be immediately aligned (refer to next step).

Tighten down screws in sequence 1 to 3.

Tightening torque, 61 61 6AZ . See GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUES .

Fig 3: Wiper Bracket Screws Tightening/Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

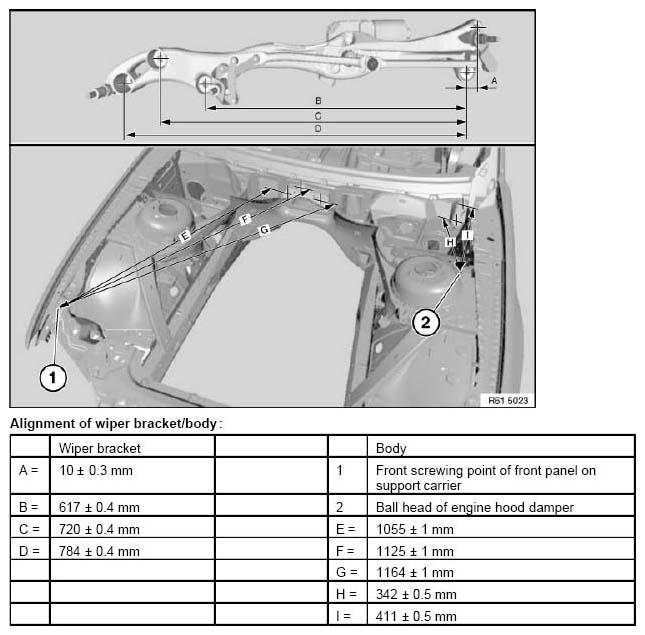

Fig 4: Identifying Alignment Of Wiper Bracket/Body Dimension

Courtesy of BMW OF NORTH AMERICA, INC.
