3.1 BMW Kinematic Diagnosis System 1, based on the Beissbarth ML4000

WARNING: This page is about a different car, the 2007 BMW 530xi, 2007 BMW 525xi, 2006 BMW 530xi, and 2006 BMW 525xi. However, it is still accessible from the selected car via links, so may be relevant.

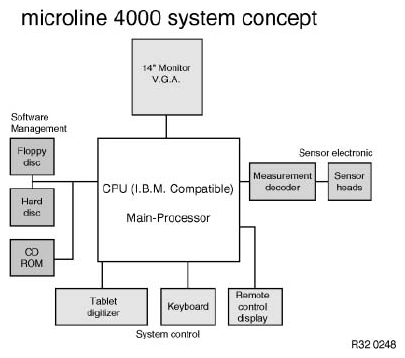

Fig 1: Microline 4000 System Function

Courtesy of BMW OF NORTH AMERICA, INC.

The KDS 1 is available in two different designs at no extra charge:

Mobile workstation

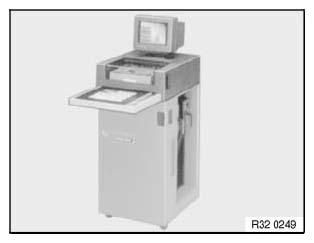

Fig 2: Identifying Mobile Workstation
Courtesy of BMW OF NORTH AMERICA, INC.
Mobile compact cabinet

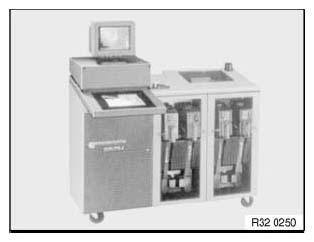

Fig 3: Identifying Mobile Compact Cabinet
Courtesy of BMW OF NORTH AMERICA, INC.

The larger workstation offers a small storage area for accessories, while the compact cabinet is mobile and ideal for restricted working areas. Both variants can be supplied as a cableless measuring system (infrared). From the point of view of measuring technology, there is only a difference in the handling and equipping of the system. For both designs, the four measuring sensors are stored in integrated inserts with rechargeable battery charging points. When automatically charged over night, the measuring sensor batteries provide enough power for 10 hours of continuous use.
