Removal & Installation
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2005 BMW 760i, 2005 BMW 760Li, 2005 BMW 745i, 2005 BMW 745Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect parking bake Bowden cables from actuating unit. See PARKING BRAKE BOWDEN CABLES .

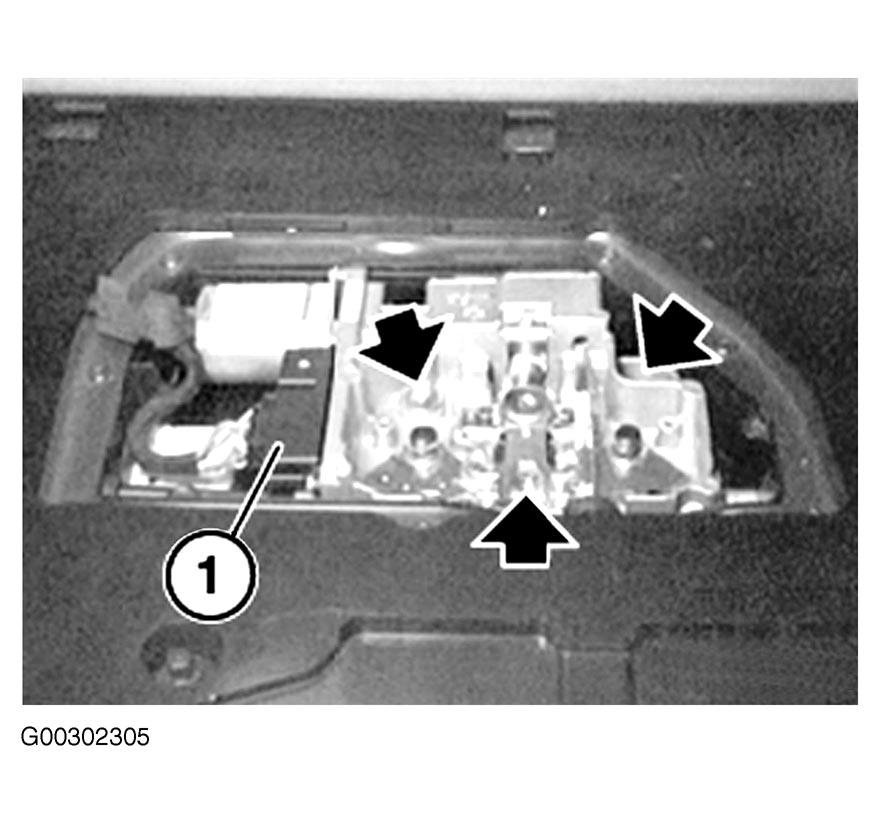

- Remove screws. See Fig 1. Pull off plug (1). Remove actuating unit with control unit.
- To install, reverse removal procedure. Tighten screws to specification. See TORQUE SPECIFICATIONS .
- Deactivate installation mode status with BMW diagnostic system. Touch parking brake button 3 times at intervals of 5 seconds. Carry out brake test on brake analyzer:
- Drive car with rear axle only onto dynamic brake analyzer.
- Turn engine off.
- Touch parking brake button and ensure uniform increase.
