66 54 001 Adjusting Night Vision Camera
WARNING: This page is about a different car, the 2008 BMW 750i, 2008 BMW 750Li, 2007 BMW 750i, and 2007 BMW 750Li. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Mechanical adjustment - as described in the following - is only possible axially.
Vertical adjustment can only be carried out with the BMW diagnosis system:
- Service functions
- -> Body
- -> Night vision
- -> Night vision camera
- -> Vertical adjustment
Necessary preliminary tasks:
- Remove grille in bumper trim on left. See 51 11 185 REMOVING AND INSTALLING/REPLACING SIDE TRIM GRILLE FOR BUMPER TRIM (FROM 03/2005)
NOTE:

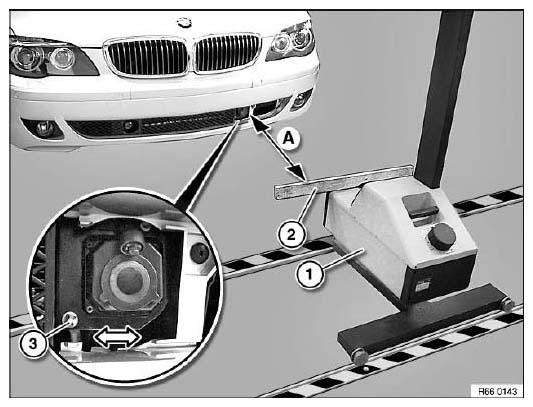

Front of car must be parallel at distance (A) to headlight aiming device (1).
A = 1.5 m
Align a suitable straight object (2), e.g. a spirit level, horizontally on headlight aiming device.
Carry out axial adjustment of night vision camera at adjusting screw (3).
NOTE:
The Fig 2 shows the in-car monitor view.
If necessary, align the picture of the night vision camera with aid of a second person.
Top edge (A) must be aligned parallel to top edge of screen (B).
