65 12 230 Removing and Installing DAB Tuner

WARNING: This page is about a different car, the 2008 BMW 750i, 2008 BMW 750Li, 2007 BMW 750i, and 2007 BMW 750Li. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection) . See 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

NOTE: Follow instructions for handling optical fibres. See 61 00 ... NOTES ON HANDLING OPTICAL FIBERS .

Necessary preliminary tasks:

Disconnect battery negative lead See 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .
Remove luggage compartment trim on left side panel. See 51 47 172 REMOVING AND INSTALLING/REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT .

Release screws (1) and remove holder (2).

Fig 1: Identifying Screws & Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (1, 2) and remove DAB tuner (3) complete with bracket.

Replacement:

Release screws (4) and remove DAB tuner from bracket.

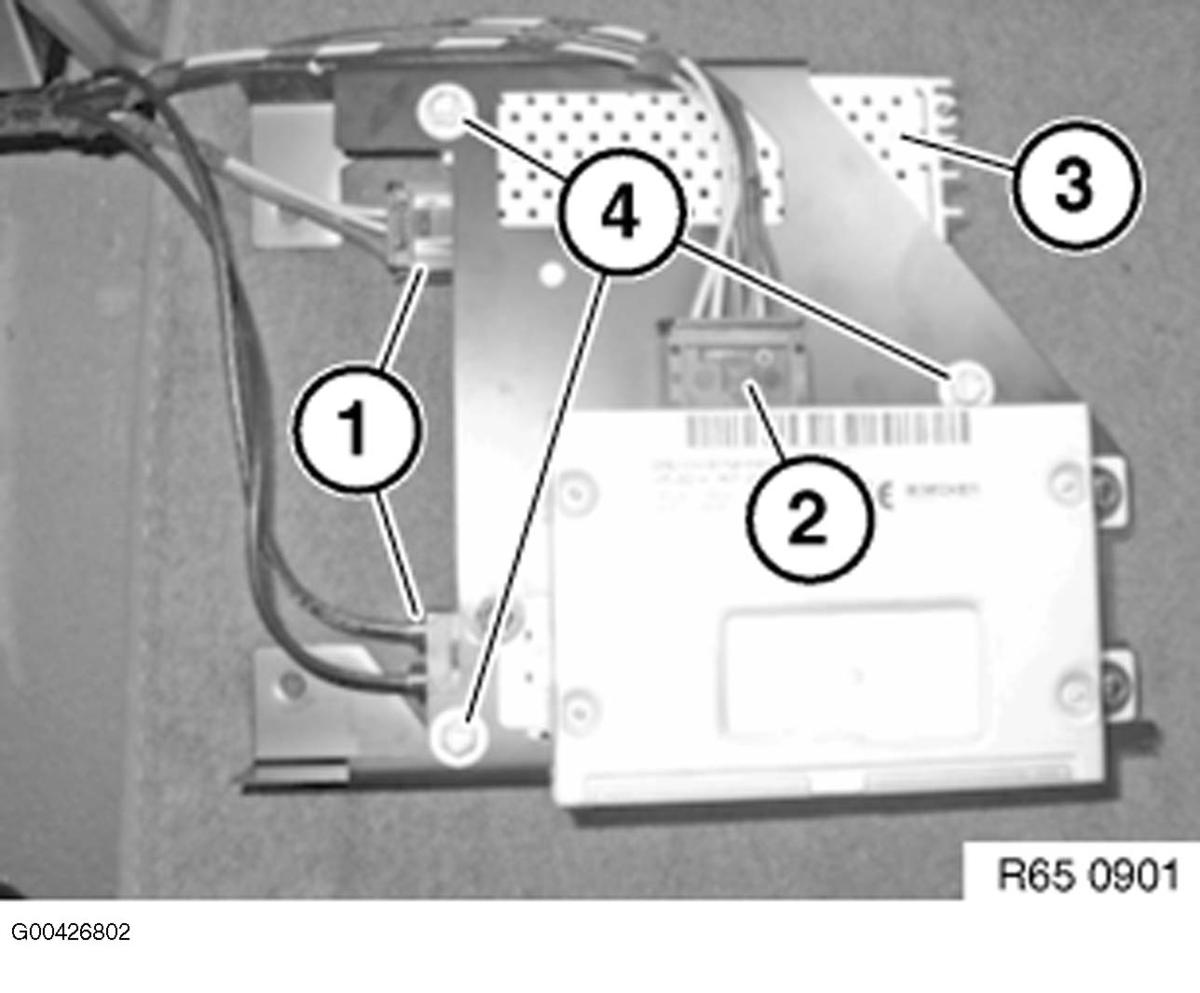

Fig 2: Identifying Plug Connections & Screws

Courtesy of BMW OF NORTH AMERICA, INC.
