65 00 .. Overview of Audio Components

WARNING: This page is about a different car, the 2008 BMW 750i, 2008 BMW 750Li, 2007 BMW 750i, and 2007 BMW 750Li. However, it is still accessible from the selected car via links, so may be relevant.

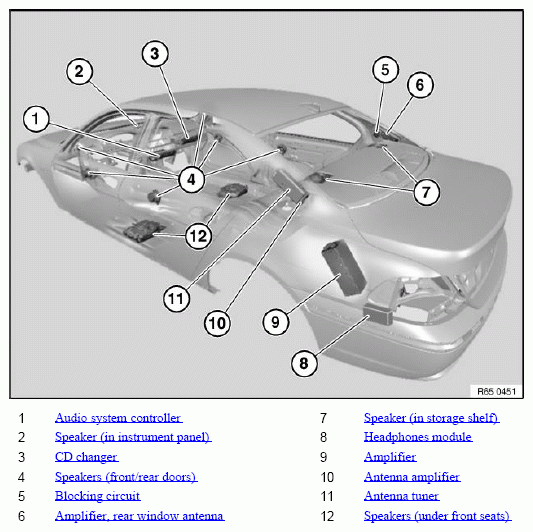

Fig 1: Identifying Audio Components
G04768994Courtesy of BMW OF NORTH AMERICA, INC.
