64 11 .. Overview Of Servodrives On Heater/Air Conditioner

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 750i, 2008 BMW 750Li, 2007 BMW 750i, 2007 BMW 750Li, and 2006 BMW 750i. However, it is still accessible from the selected car via links, so may be relevant.

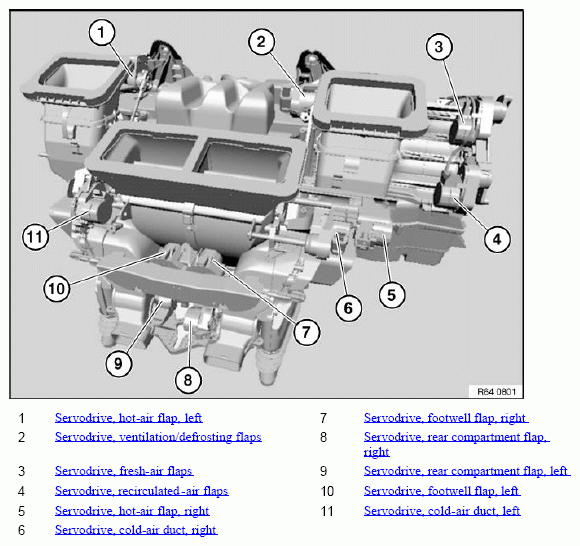

Fig 1: Identifying Servodrives On Heater/Air Conditioner Components
G04768829Courtesy of BMW OF NORTH AMERICA, INC.
