63 31 020 Removing And Installing/Replacing Footwell Light

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 750i, 2008 BMW 750Li, 2007 BMW 750i, 2007 BMW 750Li, and 2006 BMW 750i. However, it is still accessible from the selected car via links, so may be relevant.

In footwell:

Lever footwell light (1) in direction of arrow out of panel for pedals (2).

Disconnect plug connection behind and remove footwell light (1).

Fig 1: Identifying Footwell Light And Pedals

Courtesy of BMW OF NORTH AMERICA, INC.

In door:

Lever footwell light (1) in direction of arrow out of door trim (2).

Disconnect plug connection behind and remove footwell light (1).

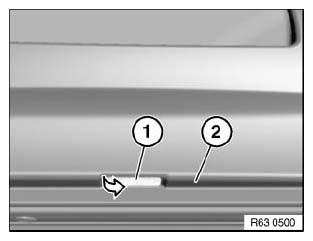

Fig 2: Identifying Footwell Light And Door Trim

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION:

Follow instructions for HANDLING LIGHT BULBS (INTERIOR LIGHTS) .

Replacement:

If necessary, remove bulb.
