61 61 270 Removing And Installing Complete Wiper Console

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 750i, 2008 BMW 750Li, 2007 BMW 750i, 2007 BMW 750Li, and 2006 BMW 750i. However, it is still accessible from the selected car via links, so may be relevant.

Remove cowl panel cover from windshield.

Remove left fresh air duct.

Unlock plug (1) and detach.

Release screws.

Remove wiper bracket (2).

Fig 1: Identifying Wiper Bracket And Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Wiper bracket (1) must rest by its own weight flat on all mounting points (2).

Fig 2: Identifying Wiper Bracket And Mounting Points

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install screws in sequence 1 to 3 and tighten hand-tight.

You should be able to install all screws without having to exert effort or twisting the wiper bracket. If the tolerance

compensation in the sleeves is insufficient or the wiper bracket does not rest flat by its own weight alone on all the mounting points, the wiper bracket and the body must be immediately aligned (refer to next work step).

Tighten down screws in sequence 1 to 3.

Fig 3: Wiper Bracket Screws Tightening/Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque, 61 61 6AZ. See GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUES .

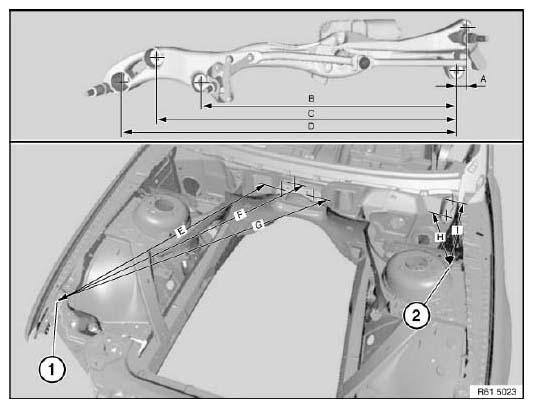

Fig 4: Identifying Wiper Bracket Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Alignment of wiper bracket/body :

ALIGNMENT OF WIPER BRACKET/BODY

	Wiper bracket		Body
A =	10 ± 0.3 mm	1	Front screwing point of front panel on support carrier
B =	617 ± 0.4 mm	2	Ball head of engine hood damper
C =	720 ± 0.4 mm	E =	1055 ± 1 mm
D =	784 ± 0.4 mm	F =	1125 ± 1 mm
		G =	1164 ± 1 mm
		H =	342 ± 0.5 mm
		I =	411 ± 0.5 mm
