51 71 ... Removing And Installing/Replacing Front Bottom Right Wheel Arch Trim

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2008 BMW 750i, 2008 BMW 750Li, 2007 BMW 760Li, and 2007 BMW 750i. However, it is still accessible from the selected car via links, so may be relevant.

Turn steering wheel/front wheel to left.

Release expansion rivet (1).

Release screws (2).

Remove wheel arch trim (3) in downwards direction.

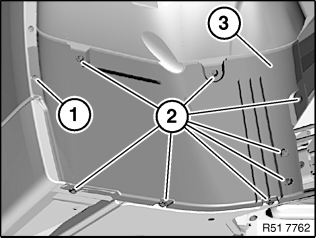

Fig 1: Identifying Wheel Arch Trim, Expansion Rivit, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
