51 24 300 Removing And Installing Or Replacing Left Or Right Gas Strut For Rear Lid

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2008 BMW 750i, 2008 BMW 750Li, 2007 BMW 760Li, and 2007 BMW 750i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove luggage compartment wheel arch trim
See REMOVING AND INSTALLING / REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM and REMOVING AND INSTALLING / REPLACING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM .

Left side only:

If necessary, remove TRANSMIT-RECEIVE UNIT incl. holder

WARNING:

Support rear lid with suitable equipment (danger of injury).

Left side only on version with automatic rear lid actuation:

Release retainer (1) and remove hydraulic cylinder (2) from gas strut (3).

Fig 1: Identifying Retainer, Hydraulic Cylinder And Gas Strut

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Removing Hydraulic Cylinder From Gas Strut

Courtesy of BMW OF NORTH AMERICA, INC.

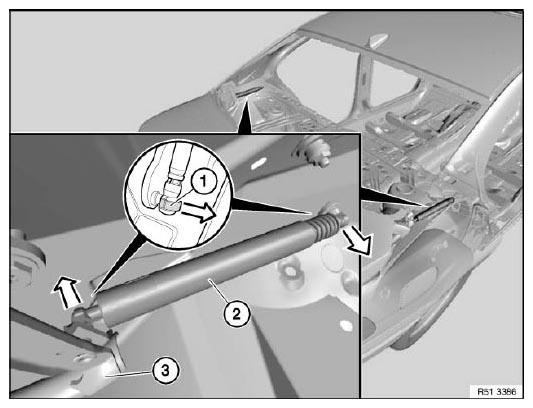

Lever out both retaining springs (1).

Lever out gas strut (2) from ball pins of side panel and rear lid hinge (3) and remove.
