51 14 110 Removing And Installing/Replacing Rear Model Designation (Up To 03/2005)
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2008 BMW 750i, 2008 BMW 750Li, 2007 BMW 760Li, and 2007 BMW 750i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
The "INSTRUCTIONS FOR NUMBER/LETTER COMBINATION CEMENTING " serve as the basis for these repair instructions and must be followed without fail.

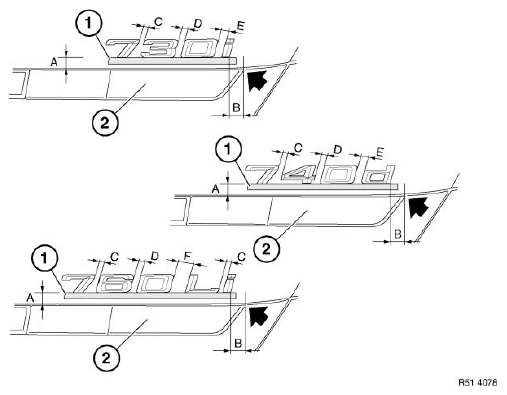

Fitting dimensions (E65, E66, E67):
Attach adhesive tape (1) to rear lid above rear fog light (2) up to top edge "A". Mark measurement "B" from outermost corner point of rear fog light (2) on adhesive tape (1).
Dimensions:
A = 16 mm
B = 35 mm
NOTE:
Measurements C, D, E and F are for information purposes only, as determined by carrier film.
C = 8 mm, D = 10 mm, E = 16 mm, F = 26 mm
