37 ... . Overview of Integrated Suspension Systems (Rear Axle)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 750i, 2008 BMW 750Li, 2007 BMW 750i, 2007 BMW 750Li, and 2006 BMW 750i. However, it is still accessible from the selected car via links, so may be relevant.

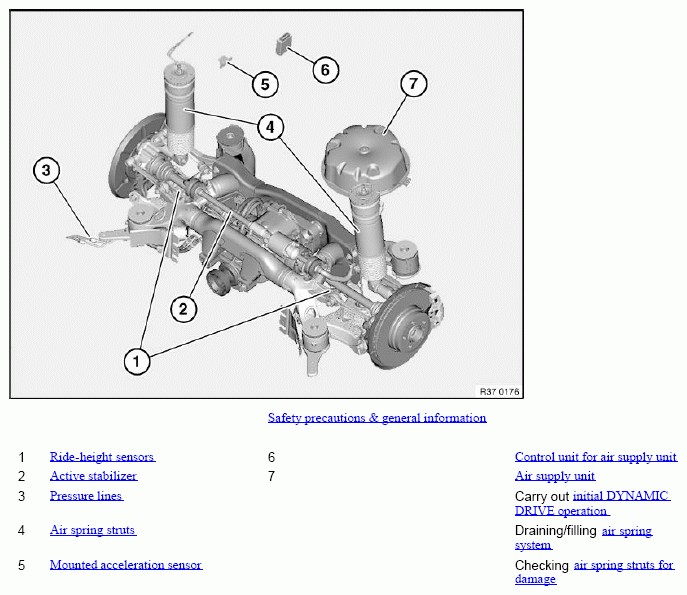

Fig 1: Identifying Active Stabilizer, Pressure Lines & Air Spring Struts
G04767239Courtesy of BMW OF NORTH AMERICA, INC.

Safety precautions & general information  See 37 00 ... NOTES ON AIR SPRING SYSTEM , 37 12 001 CHECKING FUNCTION OF LEVEL CONTROL SYSTEM  and 37 12 012 CARRY OUT RIDE-HEIGHT-CALIBRATION
