34 51 ... Overview of Mechanical/Hydraulic Components

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 750i, 2008 BMW 750Li, 2007 BMW 750i, 2007 BMW 750Li, and 2006 BMW 750i. However, it is still accessible from the selected car via links, so may be relevant.

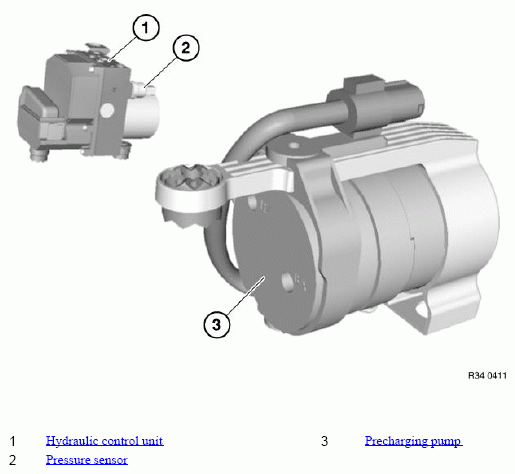

Fig 1: Identifying Overview Of Mechanical/Hydraulic Components
G04767146Courtesy of BMW OF NORTH AMERICA, INC.
