34 21 ... Overview Of Rear Brake

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 750i, 2008 BMW 750Li, 2007 BMW 750i, 2007 BMW 750Li, and 2006 BMW 750i. However, it is still accessible from the selected car via links, so may be relevant.

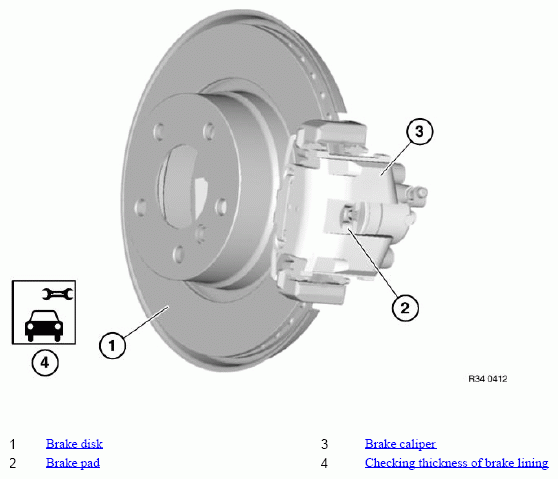

Fig 1: Identifying Overview Of Rear Brake Components
G04767076Courtesy of BMW OF NORTH AMERICA, INC.
