34 11 667 Precision-Turning Both Front Brake Discs On Both Sides

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 750i, 2008 BMW 750Li, 2007 BMW 750i, 2007 BMW 750Li, and 2006 BMW 750i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

Always precision-turn both sides of both brake discs on one axle.

Observe Max. machining dimension per friction ring side See 34 11 FRONT WHEEL BRAKES E65/E66

Minimum brake disc thickness (MIN TH) See 34 11 FRONT WHEEL BRAKES E65/E66

Brake discs of M models (Compound brake discs) must not be machined!

Only one brake pad set may be used up on brake discs which have been lathe-turned to minimum thickness (MIN TH) . See 34 11 FRONT WHEEL BRAKES E65/E66

Stationary brake disc lathe:

In the case of stationary brake disc lathes, the brake disc must be removed . See 34 11 220 REMOVING AND INSTALLING/REPLACING BOTH FRONT BRAKE DISCS

Please refer to the lathe manufacturer's instruction manual for the exact procedure.

IMPORTANT: Only BMW-approved brake disc lathes may be used!

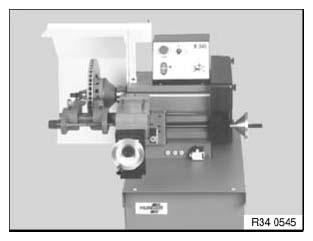

Fig 1: Identifying Stationary Brake Disc Lathe

Courtesy of BMW OF NORTH AMERICA, INC.

Mobile brake disc lathe:

In the case of mobile brake disc lathes, only the brake caliper has must be removed . See 34 11 519 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT FRONT BRAKE CALIPER

The brake discs remain on the car.

Please refer to the lathe manufacturer's instruction manual for the exact procedure.

IMPORTANT: Only BMW-approved brake disc lathes may be used!

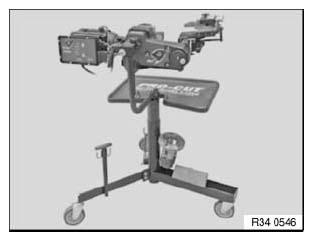

Fig 2: Identifying Mobile Brake Disc Lathe

Courtesy of BMW OF NORTH AMERICA, INC.

After fine-grinding the brake discs, measure the thickness difference inside the braking surfaces at 8 points with an external micrometer. See 34 11 FRONT WHEEL BRAKES E65/E66

Fig 3: Measuring Brake Discs Thickness

Courtesy of BMW OF NORTH AMERICA, INC.
