33 11 021 Replacing Shaft Seal For Input Flange On Rear Differential

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 750i, 2008 BMW 750Li, 2007 BMW 750i, 2007 BMW 750Li, and 2006 BMW 750i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 5 010
00 5 500
23 0 020
23 1 300
23 1 302
23 1 303
31 2 101
31 2 102
31 2 103
31 2 104
33 1 150
33 1 341
33 3 440
33 3 470
33 3 480
33 3 490

IMPORTANT: Use only approved gear oils.
Failure to comply with this instruction will result in serious damage to the rear differential!
See REAR AXLE - OPERATING FLUIDS .

Necessary preliminary tasks:

Remove propeller shaft from rear differential drive flange , remove complete propeller shaft if necessary. See 26 11 000 REMOVING AND INSTALLING COMPLETE PROPELLER SHAFT .

Removing drive flange:

Lift out retaining plate.

Mark position of collar nut (1) on drive shaft with peening tool.

Fig 1: Locating Mark Position Of Collar Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Brace drive flange with special tool 23 0 020 and release collar nut.

Fig 2: Identifying Special Tool (23 0 020)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Read and comply with 33 10 ... REAR DIFFERENTIAL: ASSIGNMENT TO MODEL SERIES .

215K, 230K:

Remove drive flange with special tools 31 2 101, 31 2 102 , 31 2 103 /31 2 104.

Fig 3: Identifying Special Tool (31 2 101), (31 2 102) And (31 2 104)

Courtesy of BMW OF NORTH AMERICA, INC.

188K/L:

Remove drive flange with special tool 33 1 150.

Fig 4: Locating Drive Flange With Special Tool (33 1 150)

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing shaft seal:

Withdraw shaft seal with special tool 00 5 010.

Fig 5: Identifying Special Tool (00 5 010)

Courtesy of BMW OF NORTH AMERICA, INC.

Drive in new shaft seal with following special tools (depending on rear differential ) as far as it will go. See 33 10 ... REAR DIFFERENTIAL: ASSIGNMENT TO MODEL SERIES .

188K/L: Use special tools 00 5 500 and 33 3 470
215K, 230K: Use special tools 00 5 500 and 33 3 440

Fig 6: Identifying Special Tool (00 5 500), (33 3 440) And (33 3 470)
Courtesy of BMW OF NORTH AMERICA, INC.

Installing drive flange:

Coat sealing lips of shaft seal and sealing surface of drive flange with differential oil.

Fit drive flange.

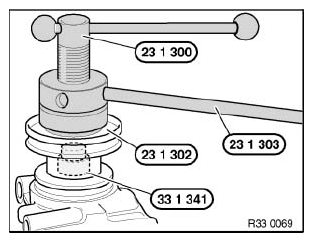

Press on drive flange with special tools 23 1 300 , 33 1 341 and 23 1 303 , if necessary 23 1 302 until collar nut can be screwed on.

Fig 7: Identifying Special Tool (23 1 300), (23 1 302) And (33 1 341)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not under any circumstances tighten down collar nut beyond marker points in order to avoid damaging the clamping sleeve.

Tighten down collar nut (1) to point where marker points are aligned.

Fig 8: Locating Mark Position Of Collar Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Drive in new retaining plate with following special tools (depending on rear differential ) as far as it will go. See 33 10 ... REAR DIFFERENTIAL: ASSIGNMENT TO MODEL SERIES ).

188K/L: Use special tools 00 5 500 and 33 3 480
215K, 230K: Use special tools 00 5 500 and 33 3 490

Fig 9: Identifying Special Tool (00 5 500), (33 3 480) And (33 3 490)
Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Only for rear differentials 188K to 230K: Change rear differential oil . See 00 11 259 OIL CHANGE IN REAR DIFFERENTIAL INCL. USED OIL DISPOSAL .
Only for rear differential 188L: Correct rear differential fluid level . See 00 11 ... CHECKING/TOPPING UP OIL LEVEL IN REAR DIFFERENTIAL .
