Removal & Installation
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2006 BMW 550i, 2006 BMW 530i, 2006 BMW 525i, 2005 BMW 545i, and 2005 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

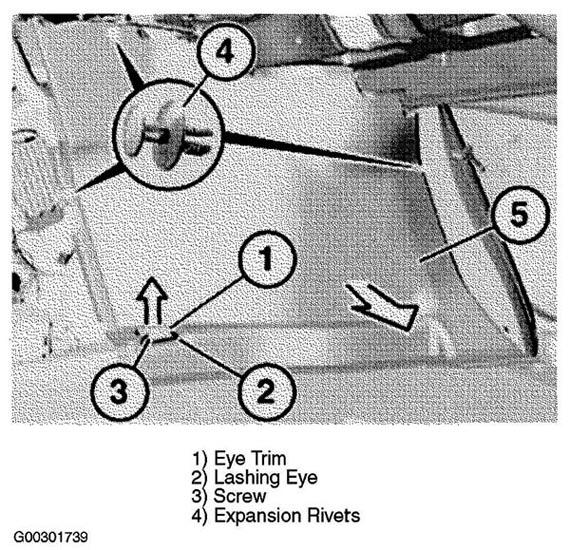

If vehicle is equipped with basic rear seat, remove rear seat back rest. If equipped with fold-down rear seat, fold down seat out of the way. Lever out lashing eye trim in direction of arrow in illustration and remove. See Fig 1 . Remove screw and remove lashing eye. Release expansion rivets and remove luggage compartment wheel arch trim in direction of arrow in illustration. See Fig 1 . To install, reverse removal procedure.
