Differential Drive Flange Shaft Seal (Left Or Right): Removal

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2006 BMW 550i, 2006 BMW 530i, 2006 BMW 525i, 2005 BMW 545i, and 2005 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove drive flange from rear differential. See DIFFERENTIAL DRIVE FLANGE (LEFT OR RIGHT) . Remove shaft seal with Special Tools (005010) and (321060/331308). See Fig 1 .

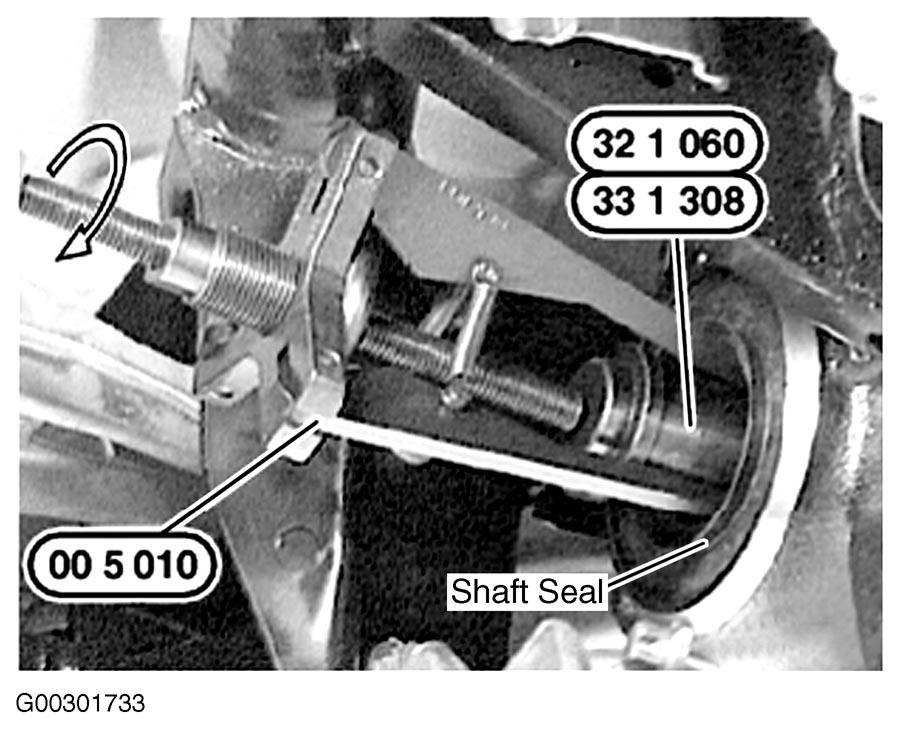

Fig 1: Removing Shaft Seal

Courtesy of BMW OF NORTH AMERICA, INC.
