Differential Drive Flange (Left Or Right): Removal
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2006 BMW 550i, 2006 BMW 530i, 2006 BMW 525i, 2005 BMW 545i, and 2005 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

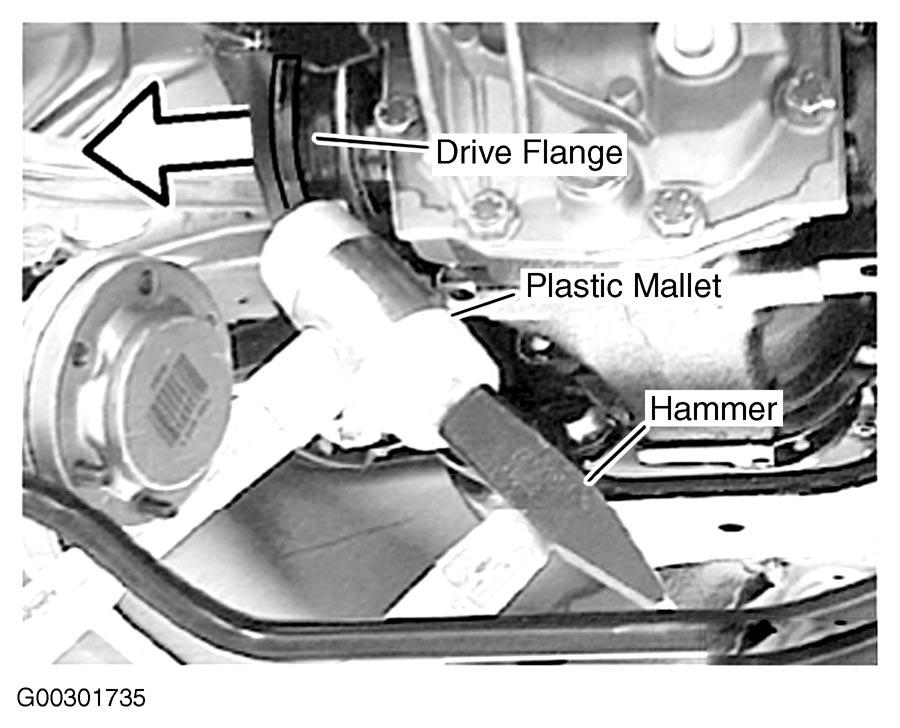

Remove axle shaft from rear differential. Place shaft aside and tie up out of the way. Place a plastic mallet in position and knock out drive flange with another hammer. See Fig 1 .
